Panasonic SA-VK91D - Page 36

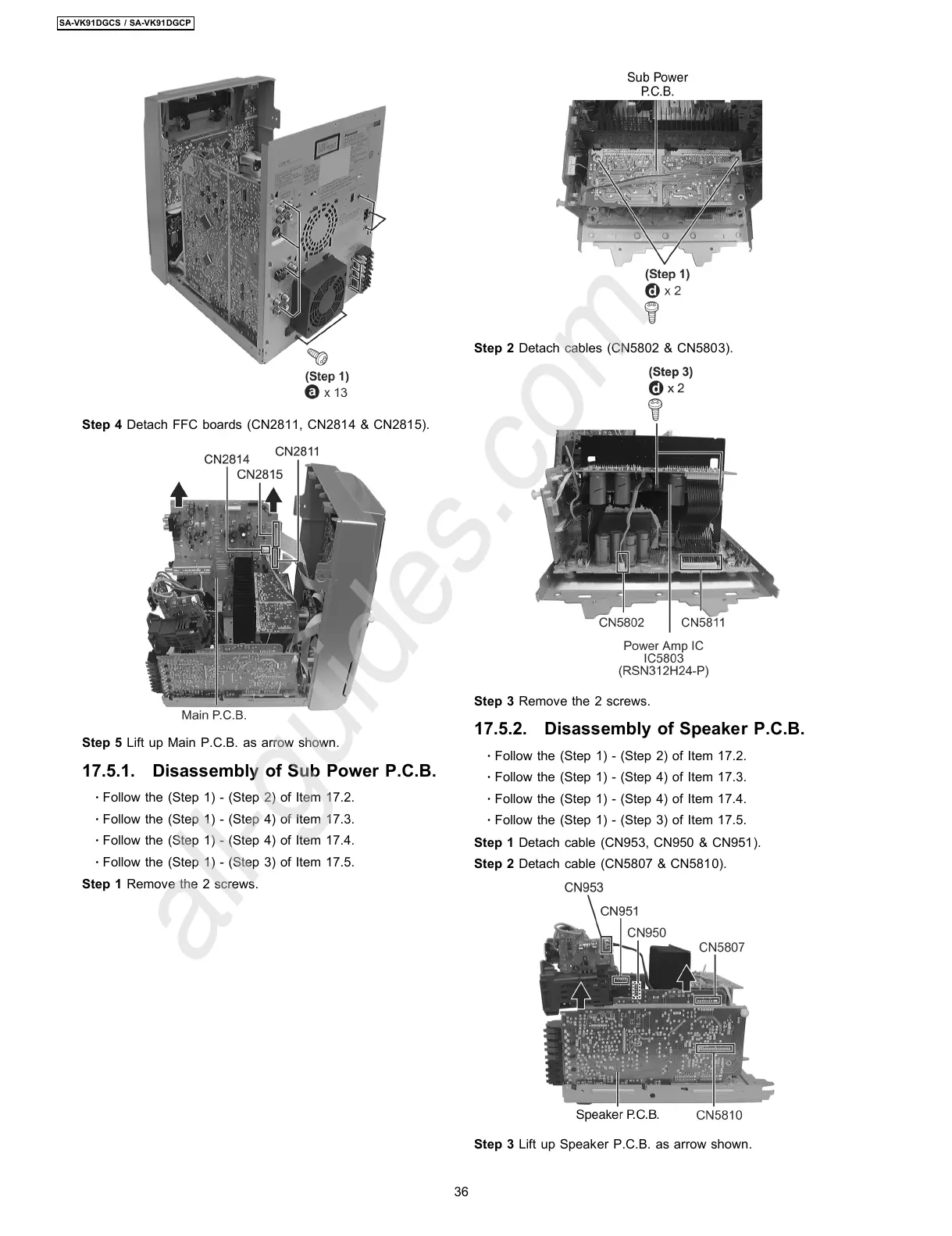

Step 4 Detach FFC boards (CN2811, CN2814 & CN2815).
Step 5 Lift up Main P.C.B. as arrow shown.
17.5.1. Disassembly of Sub Power P.C.B.
· Follow the (Step 1) - (Step 2) of Item 17.2.
· Follow the (Step 1) - (Step 4) of Item 17.3.
· Follow the (Step 1) - (Step 4) of Item 17.4.
· Follow the (Step 1) - (Step 3) of Item 17.5.
Step 1 Remove the 2 screws.
Step 2 Detach cables (CN5802 & CN5803).
Step 3 Remove the 2 screws.
17.5.2. Disassembly of Speaker P.C.B.
· Follow the (Step 1) - (Step 2) of Item 17.2.
· Follow the (Step 1) - (Step 4) of Item 17.3.
· Follow the (Step 1) - (Step 4) of Item 17.4.
· Follow the (Step 1) - (Step 3) of Item 17.5.
Step 1 Detach cable (CN953, CN950 & CN951).
Step 2 Detach cable (CN5807 & CN5810).
Step 3 Lift up Speaker P.C.B. as arrow shown.
36
SA-VK91DGCS / SA-VK91DGCP
