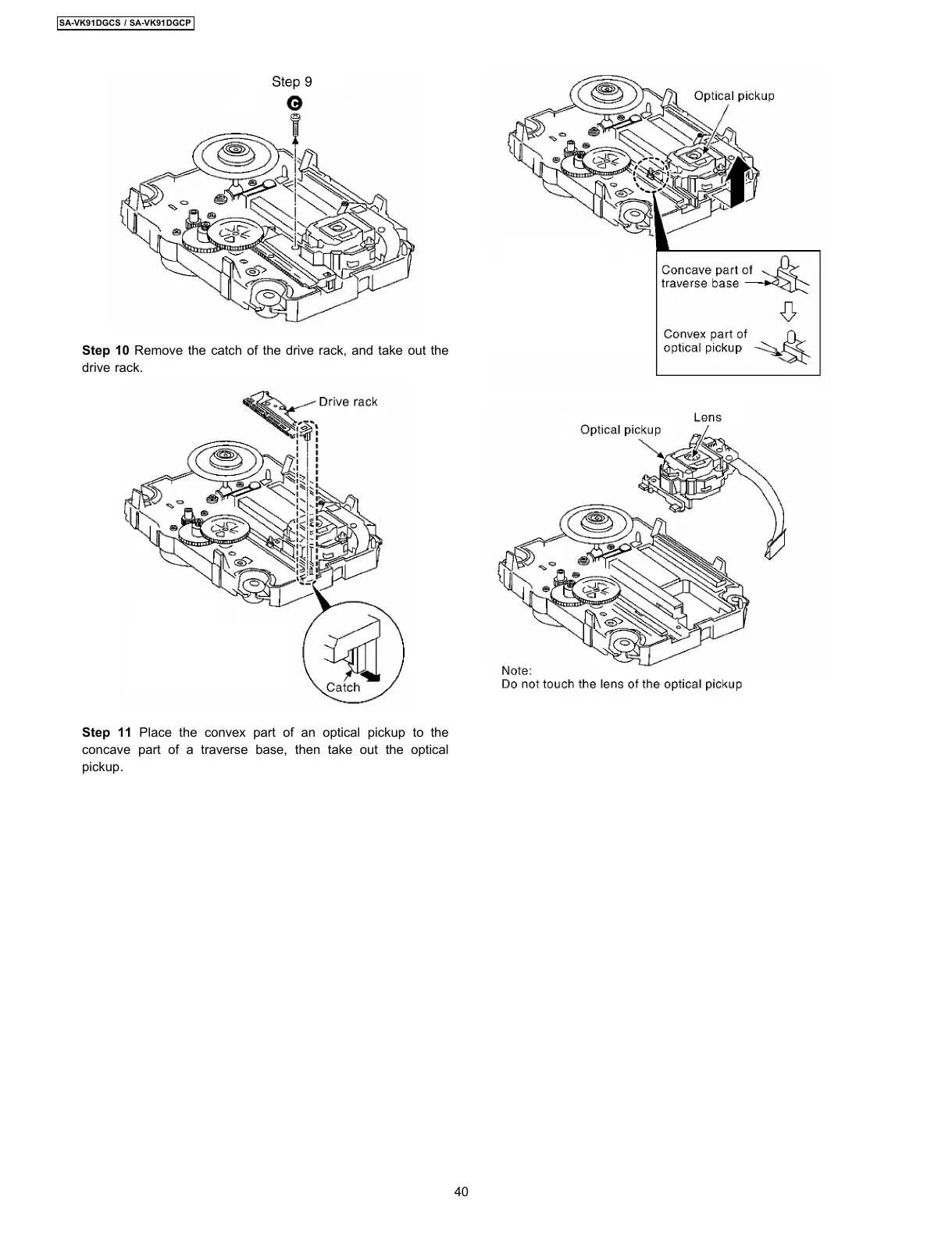

Step 10 Remove the catch of the drive rack, and take out the

drive rack.

Step 11 Place the convex part of an optical pickup to the

concave part of a traverse base, then take out the optical

pickup.

SA-VK91DGCS / SA-VK91DGCP
