Panasonic TH-37PW7BX - 7 C.board and Plasma Panel Replacement; Removal of the; Removal of the Slot Block; Removal of the J-Board

Prior to the replacement, place the unit on the pedestal
stand remove the front frame.

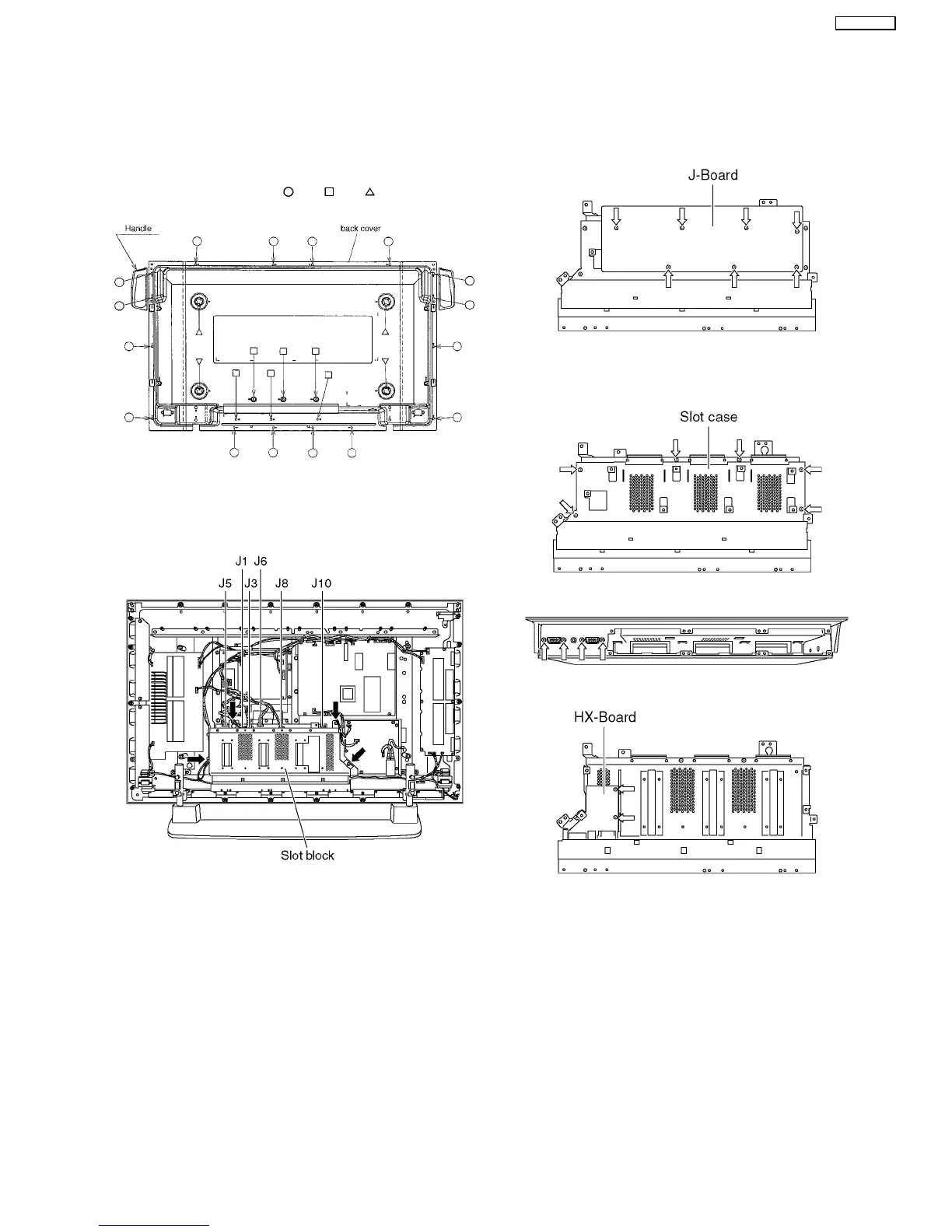

7.1. Removal of the back cover
a. Unscrew the screws (×16 ,×6 ,×4 ) and remove the
back cover.
7.2. Removal of the Slot block
a. Unscrew the couplers (J1, J3, J5, J6, J8, J10).
b. Unscrew the screws (×4) and remove the slot block.
7.3. Removal of the J-Board
a. Unscrew the screws (×7) and remote the J-Board.
7.4. Removal of the HX-Board
a. Unscrew the screws (×6) and remove the slot case.
b. Unscrew the screws (×4).
c. Unscrew the screws (×2) and remove the HX-Board.
7 P.C.Board and Plasma panel replacement
11
TH-37PW7BX
