Panasonic TH-37PW7BX - 9 Adjustment Procedure; Driver Set-Up

9.1. Driver Set-up
9.1.1. Item / Preparation
1. Input an APL 100 % white signal.
2. Set the picture controls: -
Picture mode: Normal
White balance: Normal
Aspect: 16:9
9.1.2. Adjustments

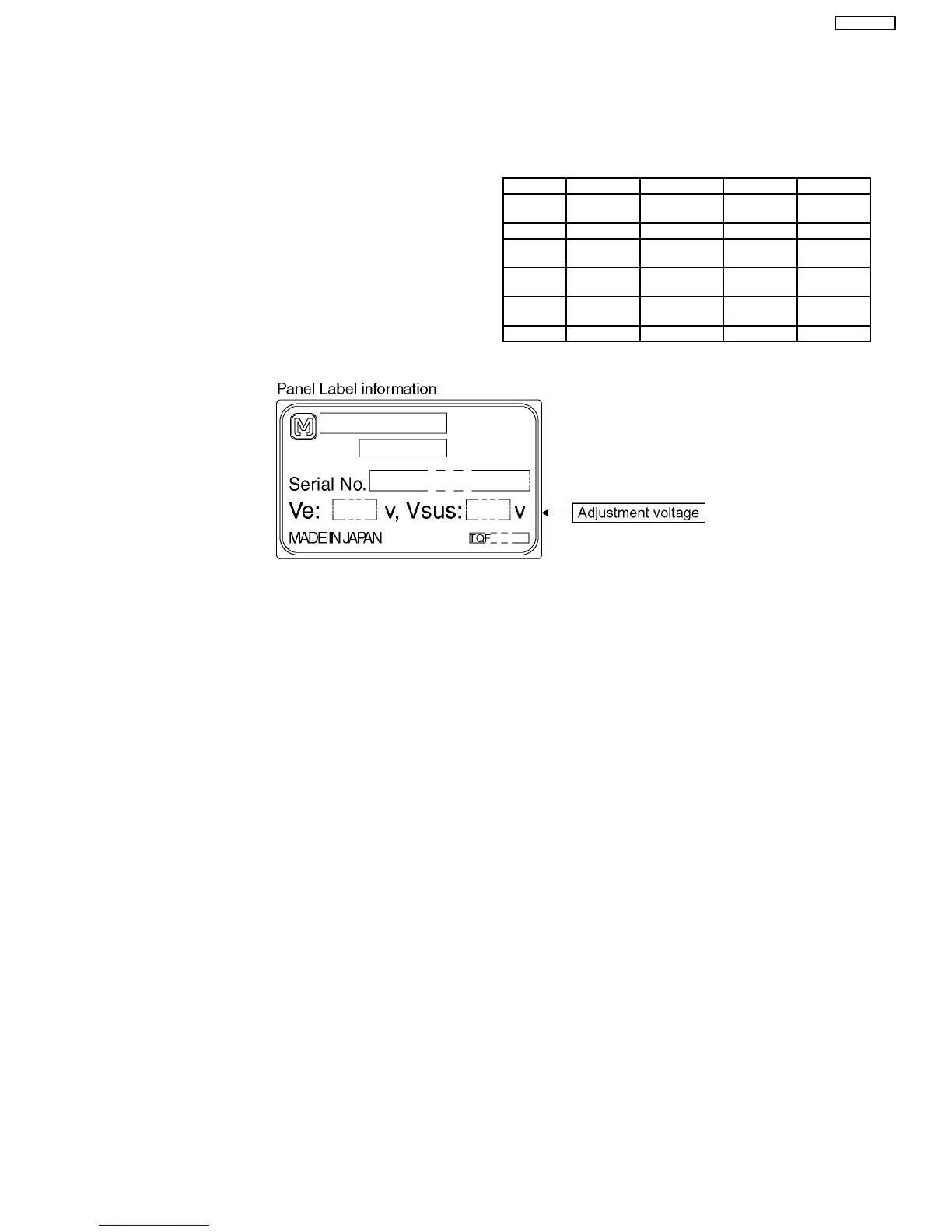

Adjust driver section voltages referring the panel data on the
panel data label.
Name Test Point Voltage Volume Remarks
Vsus TPVSUS
(SS)
174V ± 1V R628 (P)
Ve TPVE (SS) 156V ± 1V VR6074 (SS)
Vset TPVSET
(SC)
232V ± 5V ---
Vad TPVAD (SC) -90V ± 1V VR6477
(SC)
Vscn TPVSCN
(SC)
Vad*+120V ±
2V
---
Vda TPVDA (SS) 67V ± 1V R665 (P)
*See the Panel label.
9 Adjustment Procedure
17
TH-37PW7BX
