Panasonic TH-37PW7BX - Removal of the P-Board; Removal of the Z-Board; Removal of the D-Board

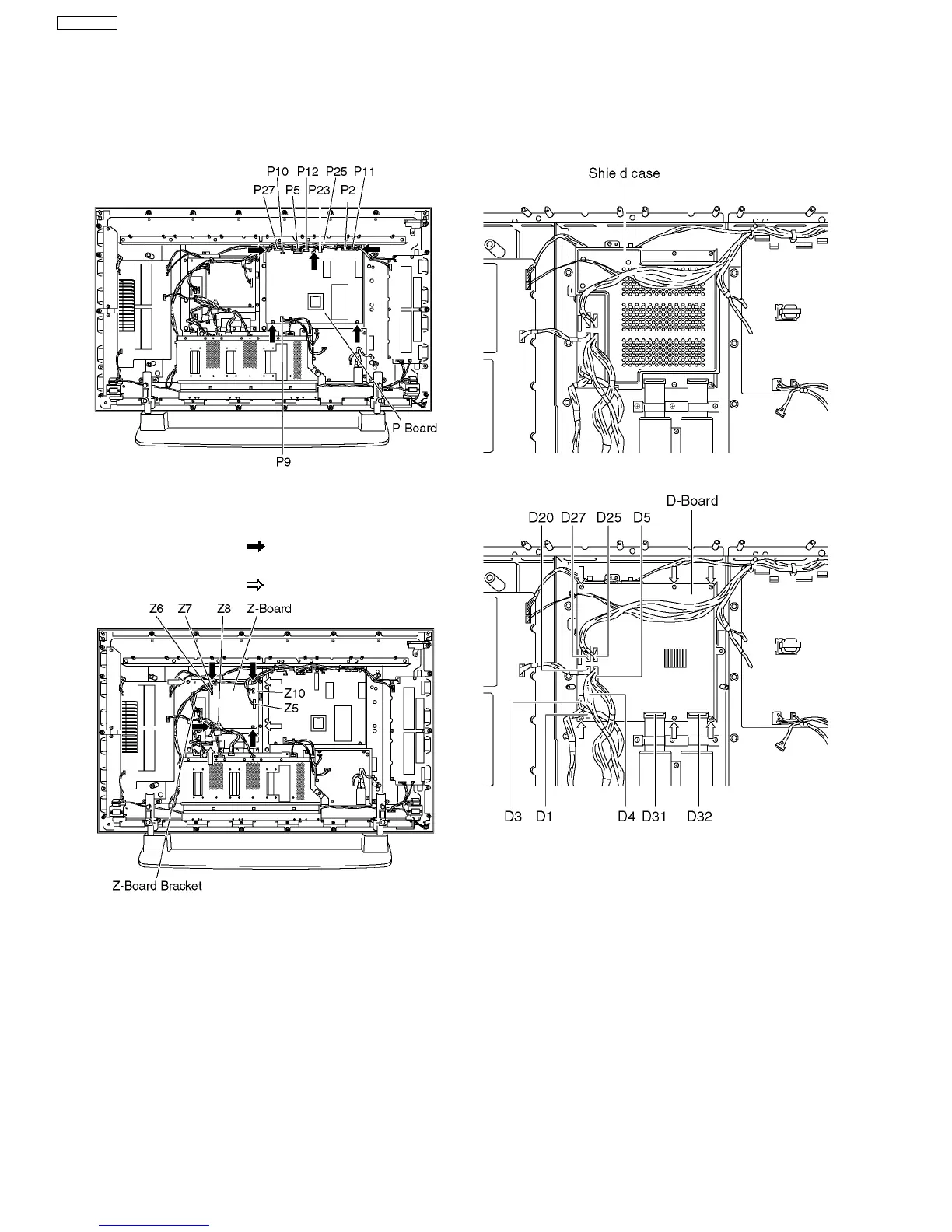

7.5. Removal of the P-Board
a. Remove the couplers (P2, P5, P7, P9, P10, P11, P12, P23,
P25, P27).
b. Unscrew the screws (×5) and remove the P-Board.
7.6. Removal of the Z-Board
a. Remove the couplers (Z5, Z6, Z7, Z8).
b. Unscrew the screws (×4
) and remove the Z-Board with
theZ-BoardBracket.
c. Unscrew the screws (×4
) and remove the Z-Board.
7.7. Removal of the D-Board
a. Disconnect the couplers (D1, D3, D5, D25, D27) and the
flexible cables (D31, D32).
b. Remove the shield cuse.
c. Unscrew the screws (×6) and remove the D-Board.
