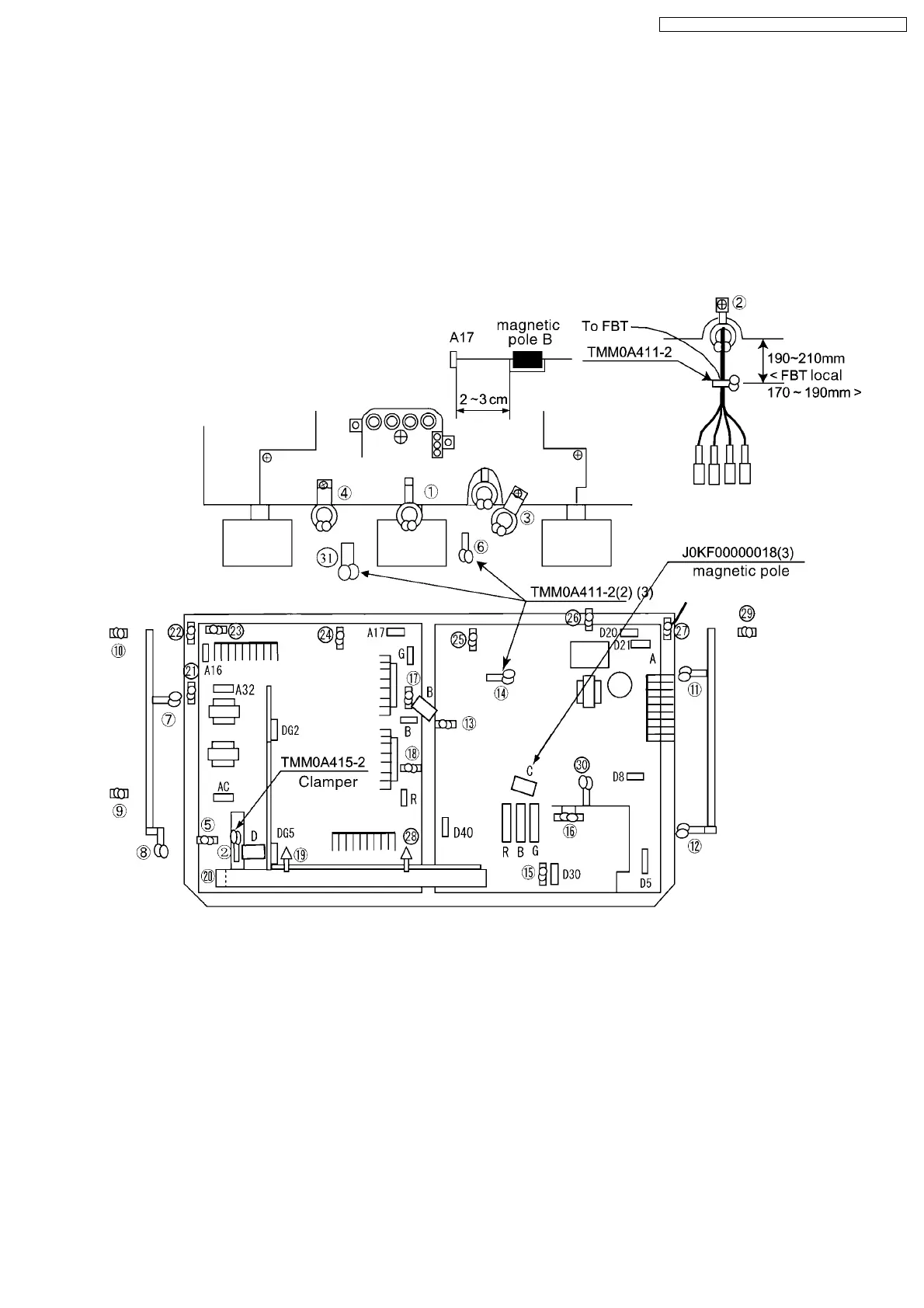

11.2. Location of Lead Wiring (2)
The Anode Lead
1. It inserts Anode lead tip in the back to FBT (the fly background transformer), and it makes turn on the right and it locks it.
(Three insertion positions are free).
2. Secure a safe space distance from the circumference part by equal to or more than 10 millimeters.
45
TX-51P950M / TX-51P950X / TX-43P950M / TX-43P950X
