INSERTION OF CONNECTOR
A6, A7, A21, A22, A23, A49, Anode distributor (R, G, B, FBT), D8, D5, DY (R, G, B),
CY (R, G, B), D30, P1, P2, P4, Focus Pack (R)

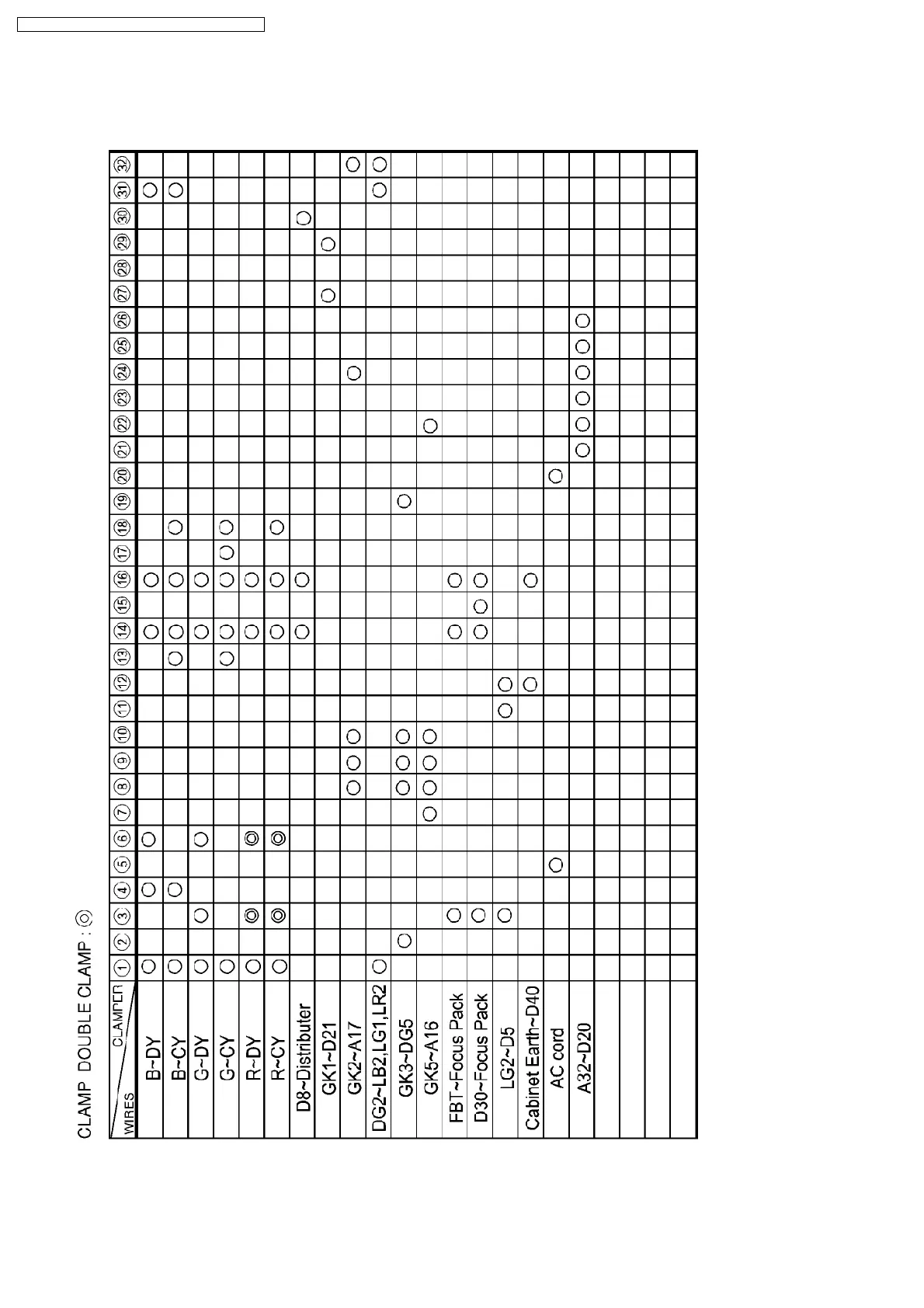

NOTICE FOR WIRE DRESSING
1. After insert R, G, B on CRT-print, confirm that wire should not touch to material parts of CRT-print.
46
TX-51P950M / TX-51P950X / TX-43P950M / TX-43P950X
