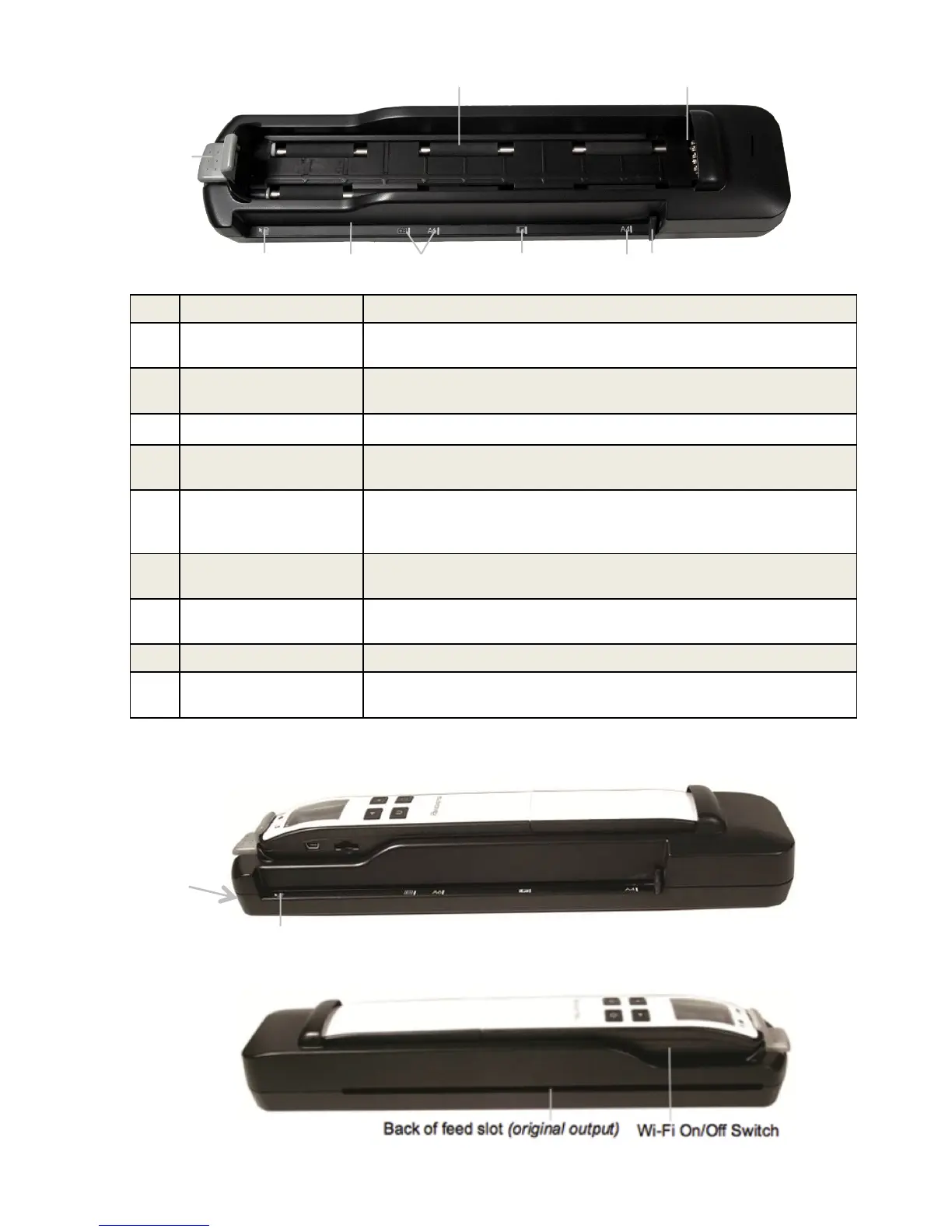

Scanner latch
Secures the scanner in the feeder dock. Press down on latch to
insert and release scanner.

Feed Sensor Rollers
Feeds originals through device while scanning. The rollers are
sensors and should only be rolled in one direction.

Scanner connector
Press scanner onto connector to engage scanner with feeder dock.

Orientation guide
Shows correct alignment and orientation for feeding original (printed
side up).

Feed Slot
Insert original into the feed slot to begin scanning. Always align
original printed side up straight against left edge of the feed dock
and firmly contact the sheet-fed roller for better auto-crop imaging.

Photo edge guides
Shows edge positions for feeding standard 3.5”x5” or 4”x6” photos in
portrait orientation.

Photo edge guide
Shows edge position for feeding 4”x6” photos in landscape
orientation.

A4 document guide
Shows edge position for feeding A4 size documents.

Guide Slide
Slide the guide up to the right edge of the original before inserting
original into the feed slot to ensure proper alignment when scanning.
-F;@@56)5@J;J5:)9@)155:56),>FR)
#
Front of feed slot (original input)
Always align originals against left edge of slot
DC jack
5V, 1.0A
'
#
)
$
%
&
(
"
!
