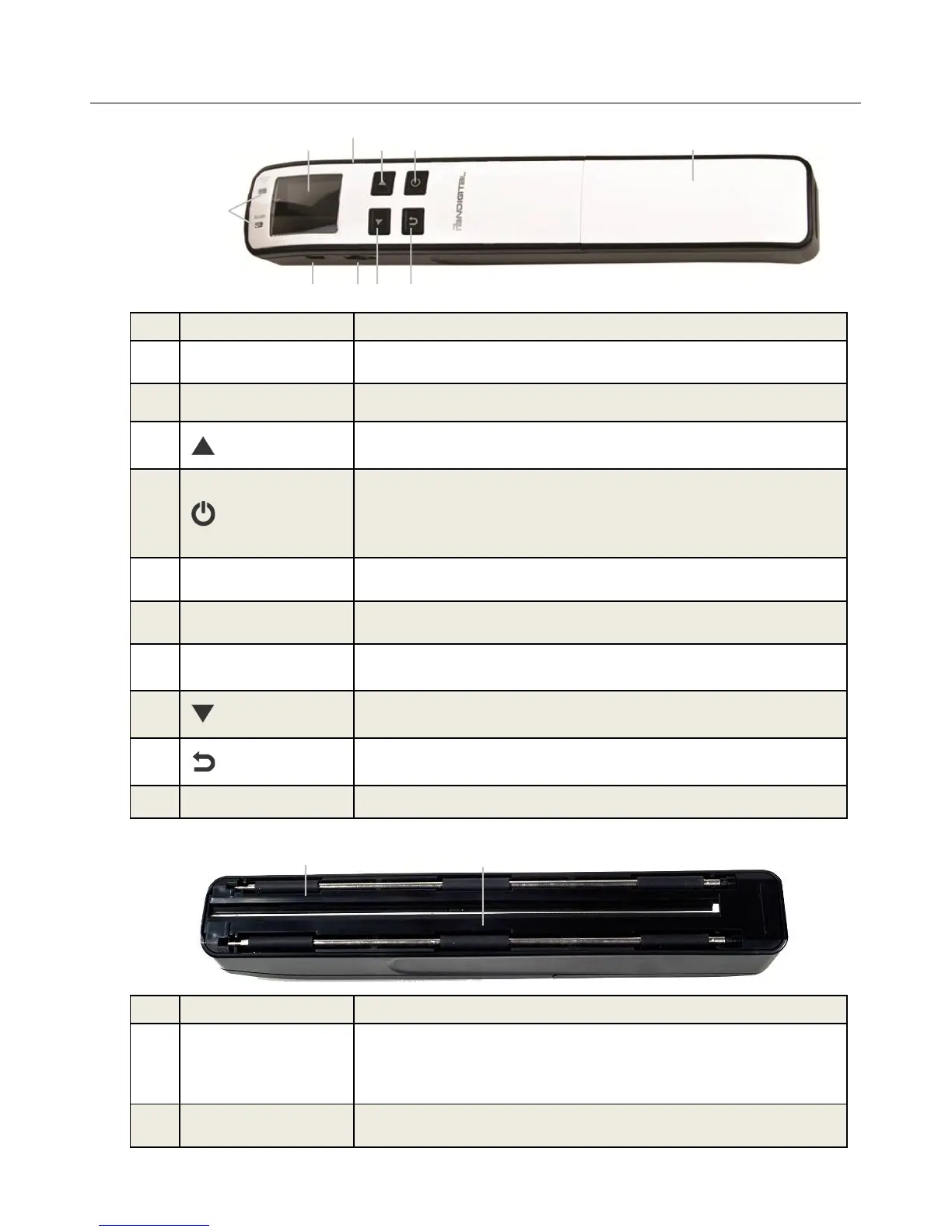

Indicator LEDs
Indicates the scanner operating status and the Wi-Fi status. (Refer to
“Scanner Indicator Lights” on page 8.)

LCD display
Displays all operational menus and options.

Up arrow
 Enters Menu screen from Scan Ready screen.
 Used to navigate “backward” through images and menu options.

Power Button
 Press to turn the scanner on.
 Used to scan (also used to scan when using wand scanner)
 Used to accept options choices in Settings and Preview options.
 Press and hold for 3 seconds to turn the scanner off.

Battery Bay Cover
Slide to remove cover for battery access. Lithium Ion Battery pack
included with scanner.

USB port
Connect scanner to your computer using the included microUSB cable to
copy scanned images to your computer.

microSD card slot
Using a microSD card (not included) increases your storage space for
storing scanned images.

Down arrow
 Enters Display mode from Scan Ready screen.
 Used to navigate “forward” through images and menu options.

Back arrow
Returns to previous screens or exits from Display mode or Settings
menu.

Wi-Fi Button
Wi-Fi ON / OFF switch.
)
-F;@@56)<>AA>C)
+>U)
+;C5)
18@FA9>@N,54F69DA9>@)

Feed Sensor Rollers
 Hand-held Wand scans: the rollers are part of Pandigital’s
ScanRite
TM
roller tracking technology for guiding your scans.
 Sheet-fed with Feeder Dock: the rollers work with the feeder dock
feed sensor rollers to feed originals through the feed slot.

Contact Image
Sensor (CIS)
The sensor that scans your originals, whether using scanner as wand
scanner or with the feeder dock.
!
"
#
$
%
&
'
!
(
)
"
