Paradox MG5000+ User Manual

MG5000+ / MG5050+ Installation Guide
13
Advanced Technology Zone (ATZ) Connections
The ATZ feature is a software oriented feature that enables two detection devices to be installed per hardwired input terminal. Each detection device has its own
zone, displays its zone status on the keypad and sends its own alarm codes. Fire zones cannot be doubled.

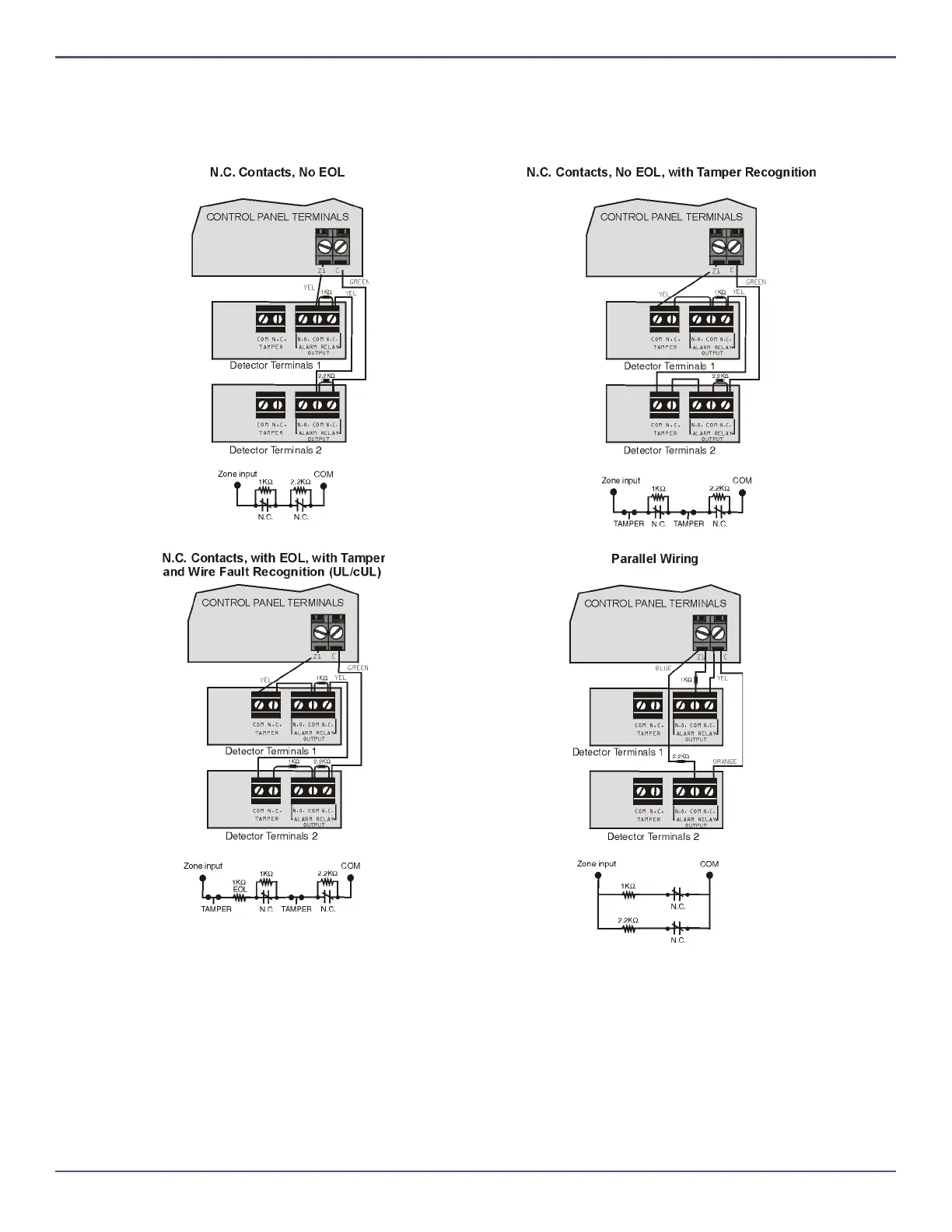

Figure 4: Advanced Technology Zone Connections

Paradox MG5000+ Specifications

General

StayD Mode	Yes
Zones	32
Wireless Expansion	Yes
Remote Control	Yes
PGMs	2
Remote Controls	Compatible with MG/SP remote controls
Battery Backup	12V 7Ah battery (not included)
Outputs	2 programmable outputs
