Foot end
Head end
Locking lever
58

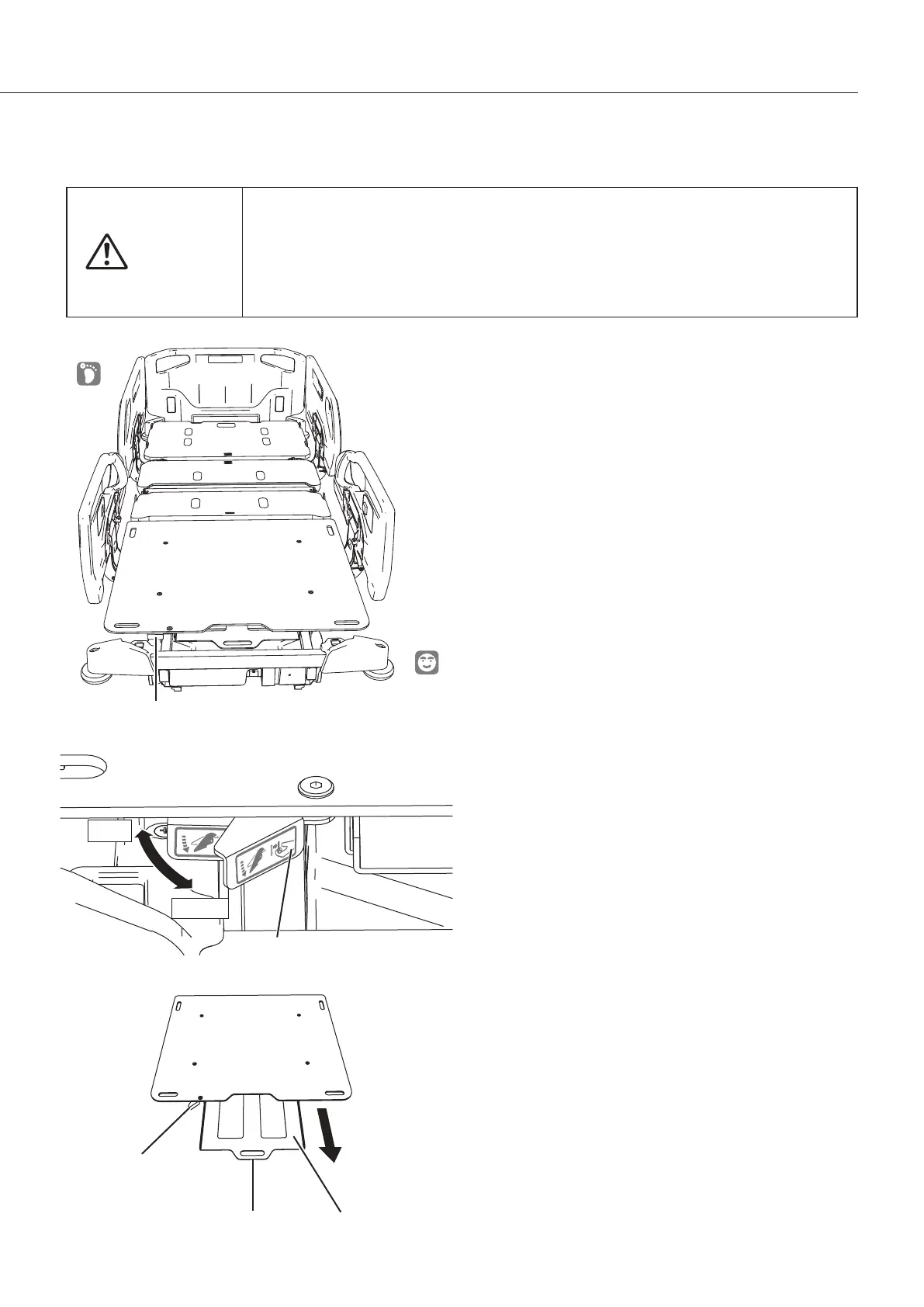

<Cassette setting procedure>
Set a cassette while the head section is in a horizontal state.
n When unlocking the locking lever, pull it toward you all the way until it
stops. Otherwise, the lever may be damaged or deformed when the
cassette tray is operated.
n While pulling out the cassette tray, do not change the locking lever from
the unlocked state. Otherwise, the lever may be damaged or deformed
when the cassette tray is operated.
1. Detach the headboard. (See p. 29)
2. Pull the locking lever toward you to unlock it.
Lock
Unlock
Locking lever
3. Hold the grip and pull the cassette tray all the
way out.
Locking lever (unlocked)
Pull out
Cassette trayGrip
