Extension frame
The bed can be extended for tall patients by pulling out the extension frame and adding an extension
mattress (accessory).
When using the extension frame, use a suitable extension mattress
(accessory: see p. 83). A body part may get caught in a gap between the
bed and extension frame or side-rail, resulting in injury.
<Pulling out the extension frame>
1. Pull the frame stoppers attached to the left and
right of the bed toward you and turn them either
clockwise or counterclockwise to unlock.
2. Hold the extension frame and pull it toward you a
little.
3. Turn the frame stoppers to the locked position
and set them to the slide state (half-engaged
state).
4. Hold the extension frame again and pull it toward
you until there is a click and the frame stoppers
become locked in place.
5. Lightly push the extension frame to make sure
that it is securely locked.
6. Refer to the instruction manual of the extension
mattress (accessory) and then attach the
extension mattress.
* Pull out toward you

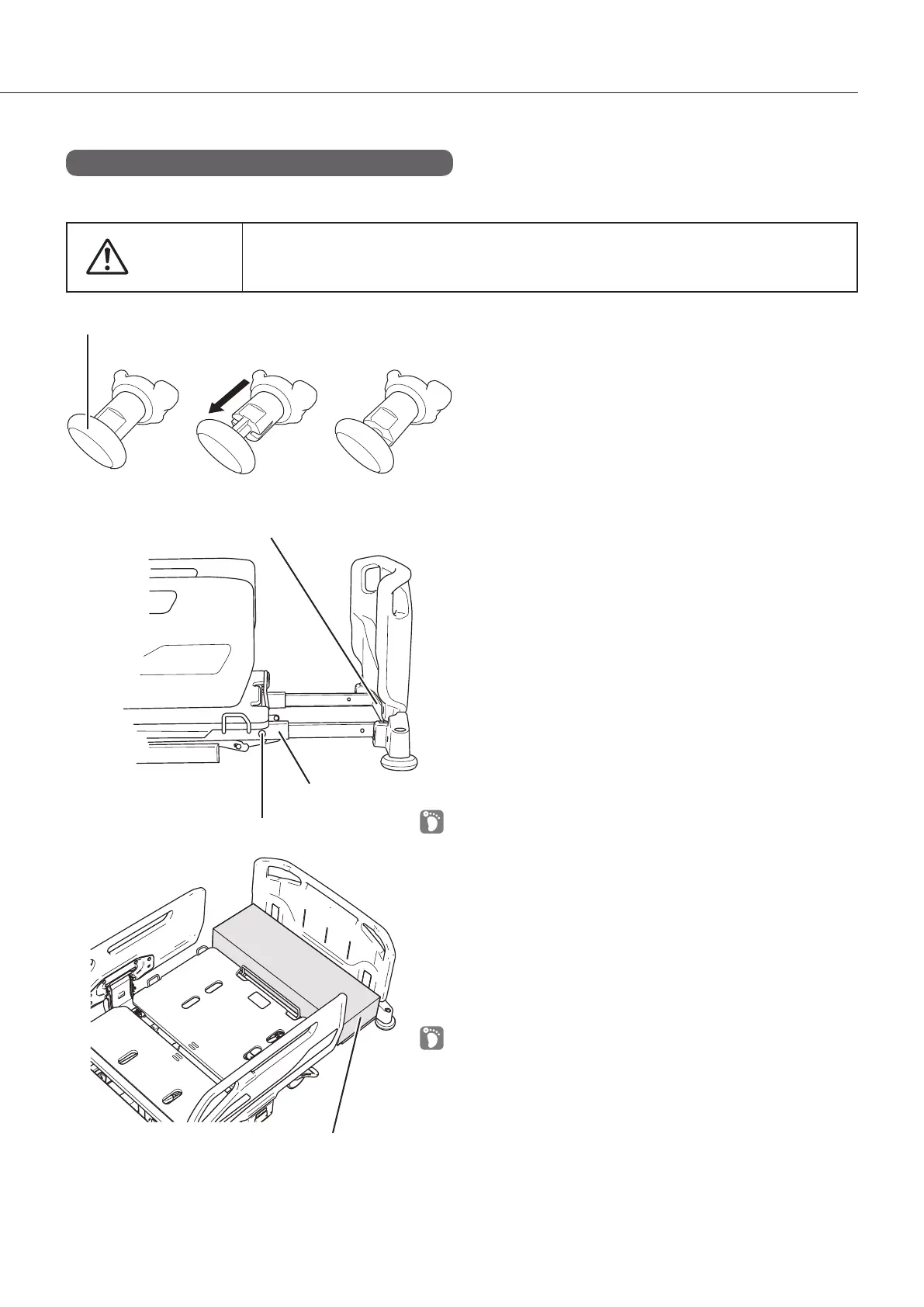

Locked state Slide stateUnlocked state
Frame stopper
Extension frame
Extension mattress
(accessory: see p. 83)
Frame stopper
Main frame
