598P/599P Application Manual
Overview
The 598/9P External Stack Controller Assembly provides the Hardware necessary to interface the 590Plus
Control Door to an existing 3 Phase Stack assembly. The Design assumes that a Fully Controlled 3 Phase Six
Pulse Converter exists which is complete with Thyristor Suppression, Current Feedback, Temperature
Monitoring and Suitable Fusing.
The External Stack Controller Module provides: -
• Thyristor Firing Signals;
• Thyristor Firing Pulse Transformers;
• ACCT Feedback Rectification and Scaling;
• Armature Voltage Feedback Interface;
• Coding and Phase Rotation Interface;
• Mains Present Monitoring
• Heatsink Over-temperature Input;
• Field Power Modules and Input / Output Terminations;
• Field Current Monitoring and Scaling;
• All Standard 590Plus I/O Terminations.

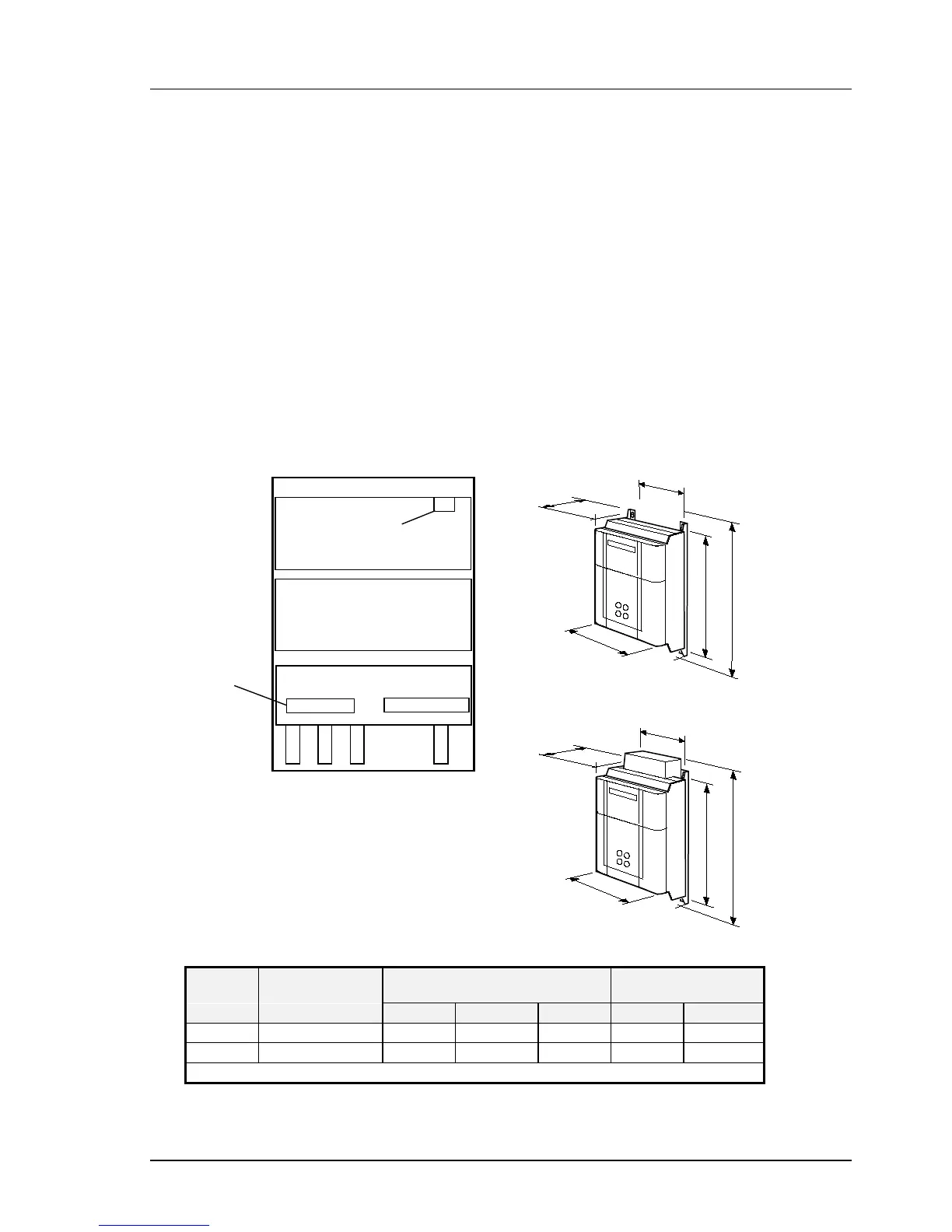

Outline Drawing
