Compax3F device description
192-121100 N6 June 2008 23

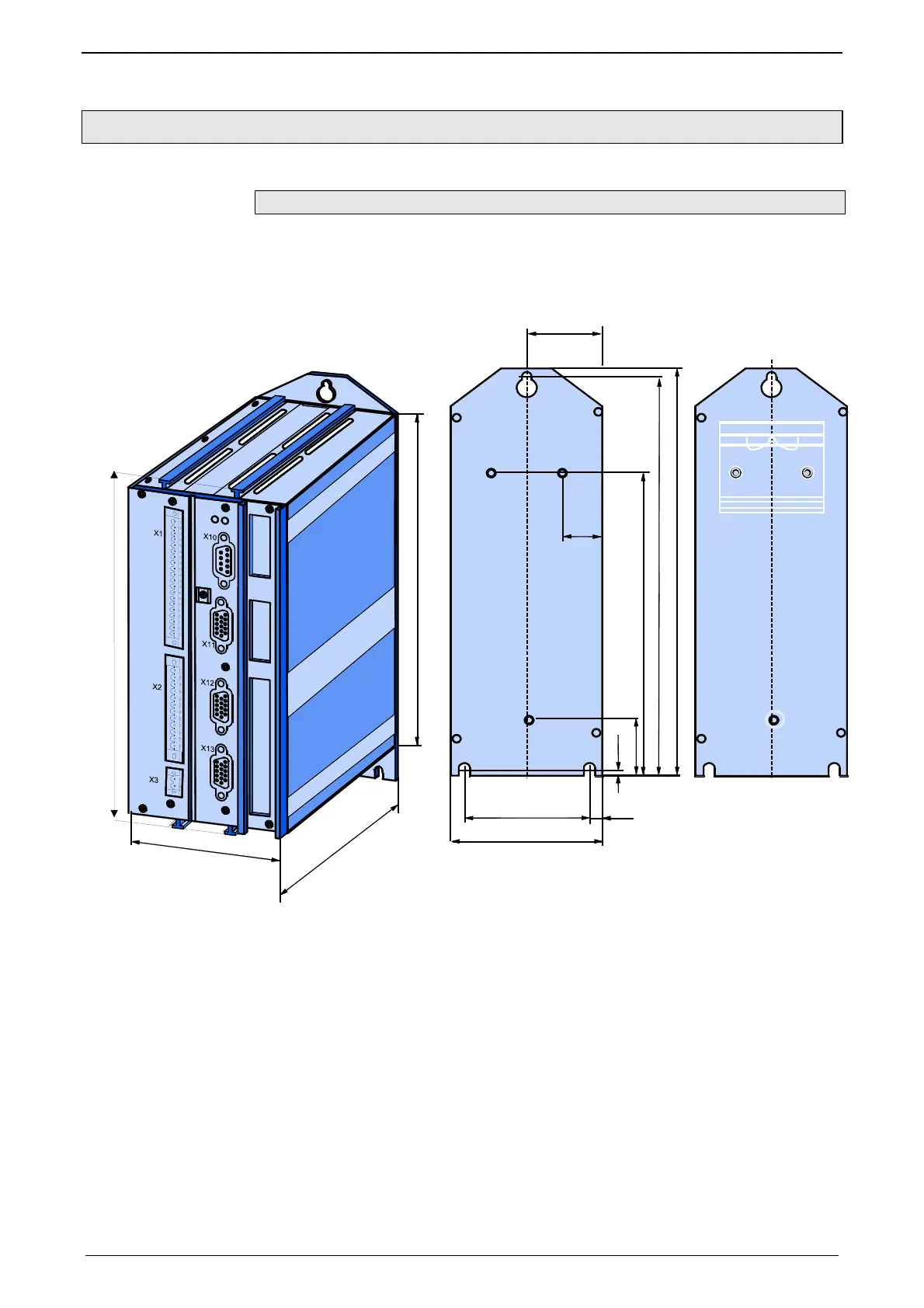

3.2.11. Mounting and dimensions
Mounting:
 3 socket head screws M5 or
 by direct snapping on a 35mm supporting rail (according to DIN EN 50 022),
Mounting material: DIN rail clip and distance piece available as accessories - Set
ZBH02/04
2
1
6
2
2
2
65
1
9
1
1
3
0
8
0
1
9
9
40
7,5
80
2
3
1
5
0
6
17,5
Stated in mm

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
