Parker Compax3 Installation Manual

Parker EME
Compax3F device description
192-121100 N6 June 2008 19

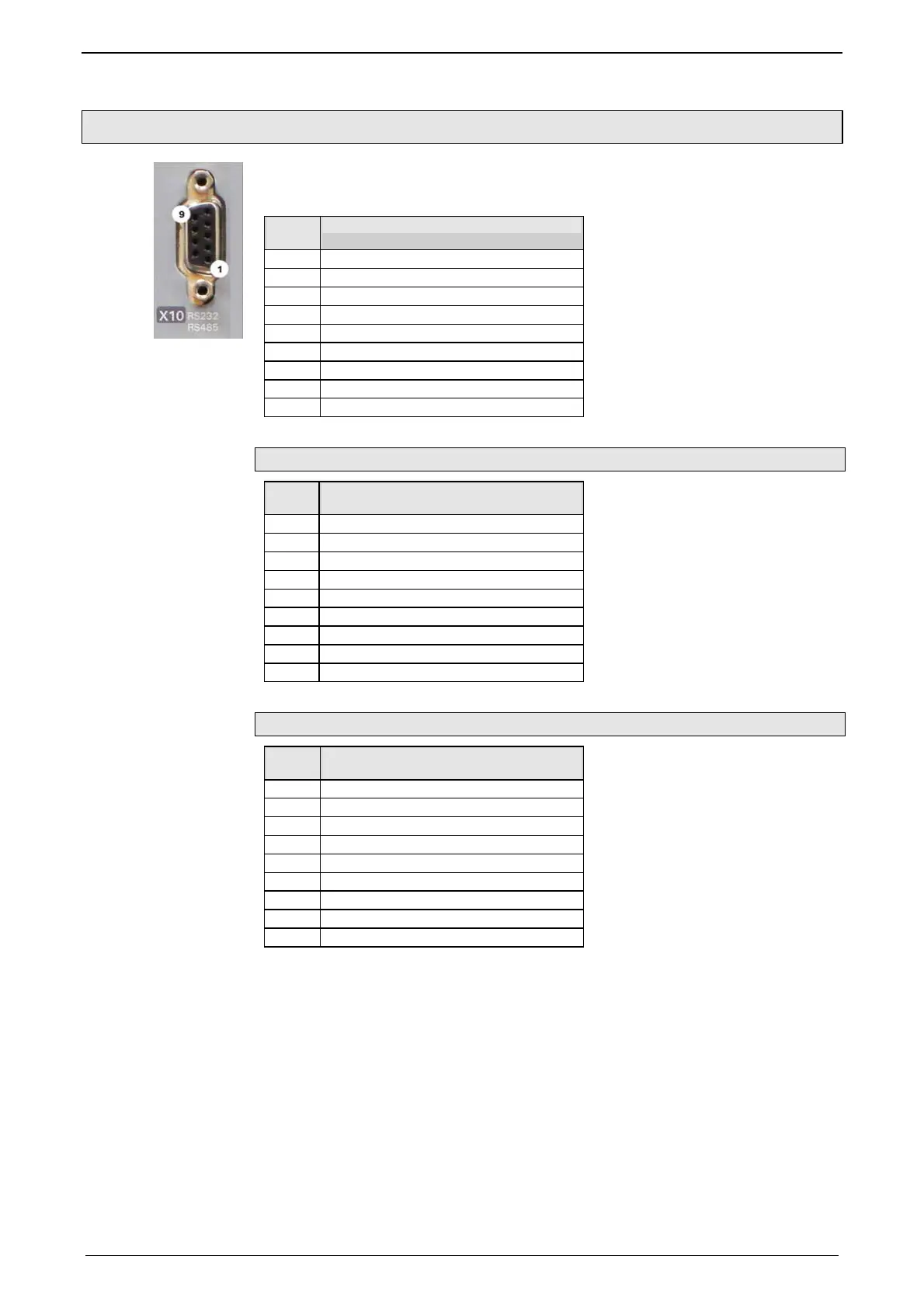

3.2.7. RS232 / RS485 interface (plug X10)
Interface selectable by contact functions assignment of X10/1:
X10/1=0V RS232
X10/1=5V RS485
PIN
X10
RS232 (Sub D)
1 (Enable RS232) 0V
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 +5V
RS485 2-wire
PIN
X10
RS485 two wire (Sub D)
Pin 1 and 9 jumpered externally
1 Enable RS485 (+5V)
2 res.
3 TxD_RxD/
4 res.
5 GND
6 res.
7 TxD_RxD
8 res.
9 +5V
RS485 4-wire
PIN
X10
RS485 four wire (Sub D)
Pin 1 and 9 externally jumpered
1 Enable RS485 (+5V)
2 RxD
3 TxD/
4 res.
5 GND
6 res.
7 TxD
8 RxD/
9 +5V
USB - RS232/RS485 converter
The following USB - RS232 converters were tested:
 ATEN UC 232A
 USB GMUS-03 (available under several company names)
 USB / RS485: Moxa Uport 1130 http://www.moxa.com/product/UPort_1130.htm
 Ethernet/RS232/RS485: NetCom 113 http://www.vscom.de/666.htm

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
