Parker Compax3 Installation Manual

Introduction
Hydraulics controller
8 192-121100 N6 June 2008

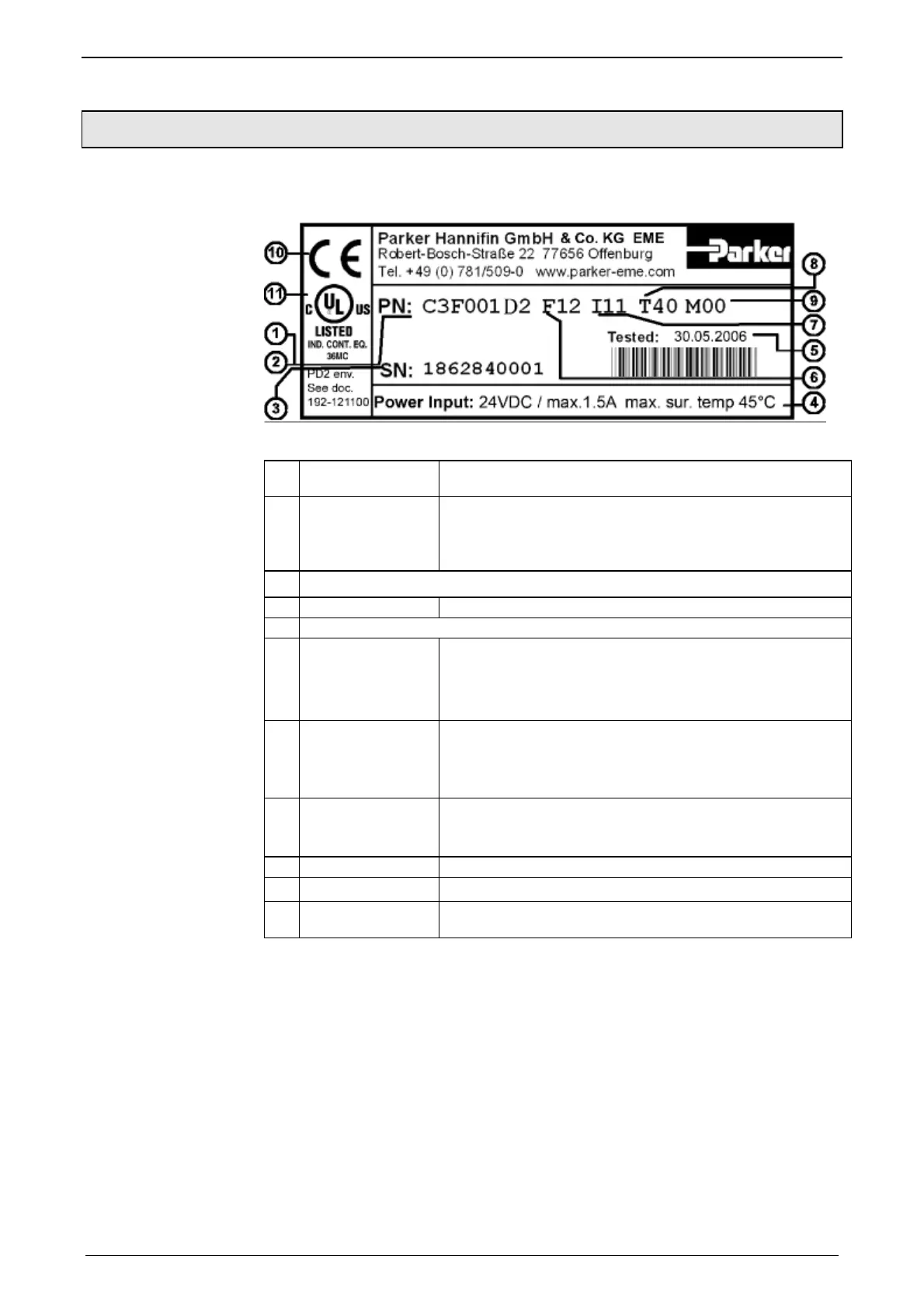

2.2 Type specification plate Compax3 Fluid
You will find the exact description of the device on the type specification
plate, which is located on the right side of the device:
Explanation:
1 Type designation
The complete order designation of the device (2, 6, -9...)
(Category No.)
2 C3F001D2
C3:Abbreviation for Compax3
F =Fluid:Hydraulics controller
001:+/-10V and 0..20mA outputs (16 Bit)
D2:24VDC device
3 Unique number of the particular device
4 Supply voltage 24 VDC
5 Date of factory test
6
Designation of the
feedback system
F12: Feedback Module
7 Device interface
I11 / I12: Digital Inputs / Outputs and RS232 / RS485
I20: Profibus DP
I21: CANopen
I22: DeviceNet
8 Technology function
T11: Positioning / pressure/force control
T30: Motion control programmable according to IEC61131-3
T40: Electronic cam generation
9 Options
Mxx:
10 CE compliance
11 UL certification PD2 (see page 25)
(degree of pollution)
Type specification
plate Compax3
Fluid:

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
