Parker Compax3 Installation Manual

Compax3F device description Hydraulics controller
18 192-121100 N6 June 2008

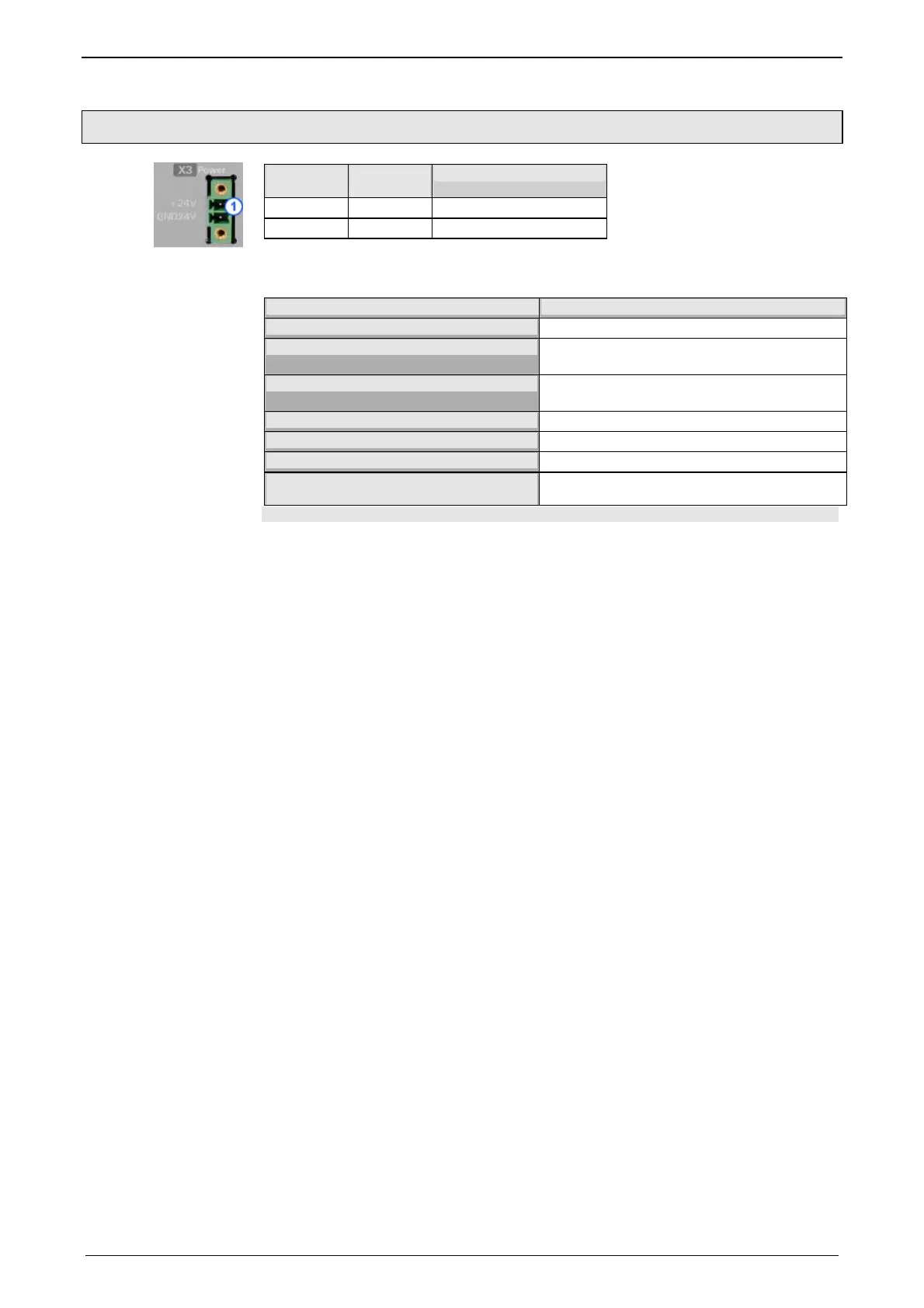

3.2.6. Voltage supply (plug X3)
Connector
X3 Pin
Descriptio
n
Combicon 5mm
1 +24 V 24 VDC (power supply)
2 Gnd 24 V GND
Voltage supply 24VDC
Controller type Compax3 F001 D2
Voltage range
21 - 27VDC
Mains module
with switch-on current limitation, due to
capacitive load
Fuse
MTP miniature circuit breaker or "delayed action
fuse", due to capacitive load
Current drain of the device
0.8A (max. 1.5A)
Total current drain
0.8A + total load of the digital outputs
Ripple
<1Vss
Requirement according to safe extra
low voltage (SELV)
yes

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
