Parker Compax3 Installation Manual

Compax3F device description Hydraulics controller
16 192-121100 N6 June 2008

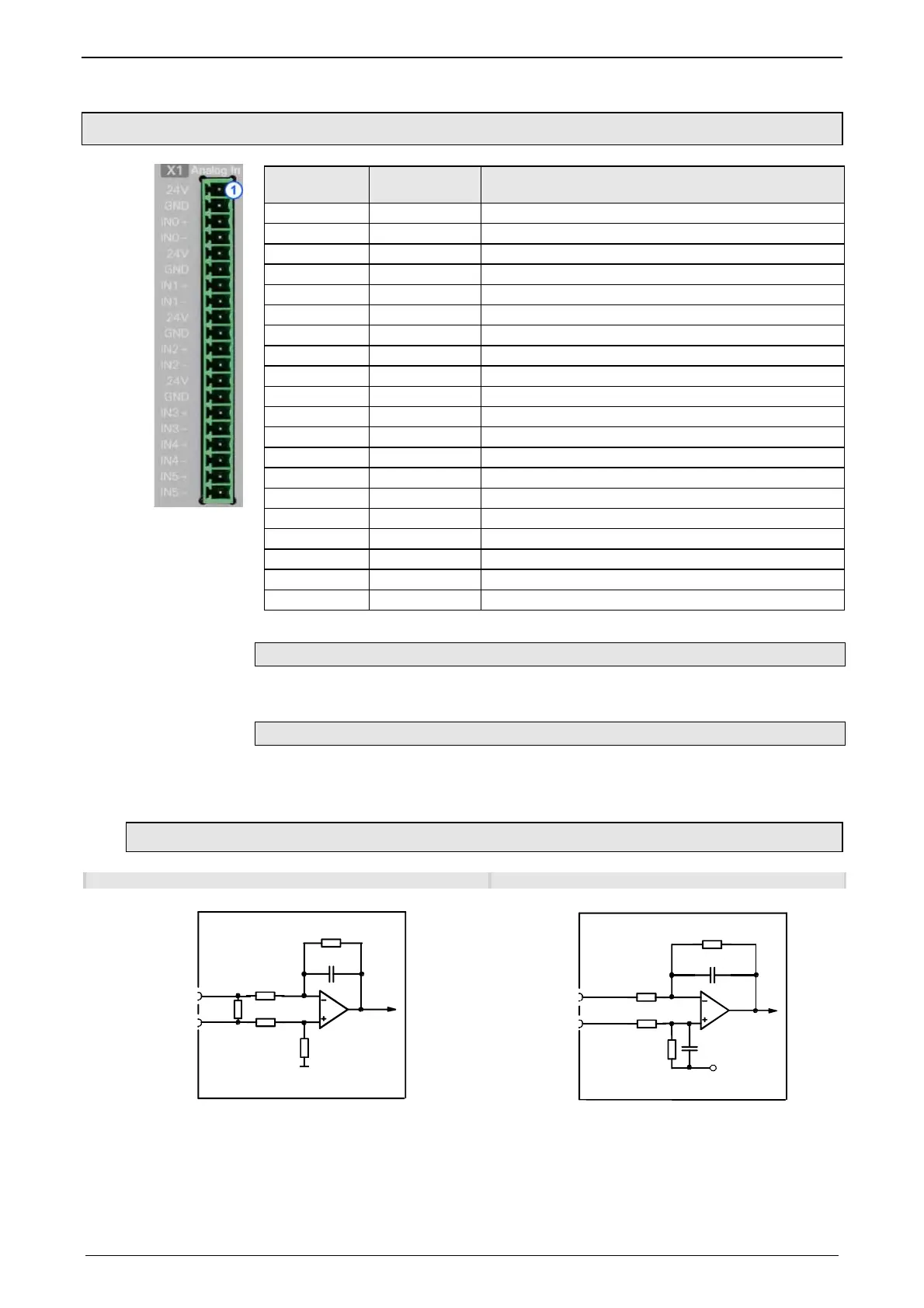

3.2.4. Analog Input (plug X1)
Connector X1
Pin
Description Combicon 3,81mm; female connector
1 24V Supply Sensor 0
2 GND Supply Sensor 0
3 IN0+ Signal Sensor 0 +
4 IN0- Signal Sensor 0 -
5 24V Supply Sensor 1
6 GND Supply Sensor 1
7 IN1 + Signal Sensor 1 +
8 IN1 - Signal Sensor 1 -
9 24V Supply Sensor 2
10 GND Supply Sensor 2
11 IN2 + Signal Sensor 2 +
12 IN2 - Signal Sensor 2 -
13 24V Supply Sensor 3
14 GND Supply Sensor 3
15 IN3 + Signal Sensor 3 +
16 IN3- Signal Sensor 3 -
17 IN4+ +/-10V Input 4
18 IN4- +/-10V Input 4
19 IN5+ +/-10V Input 5
20 IN5- +/-10V Input 5
Requirement: Connection cable
Use shielded cables.
Shield connection of the cables
The cable should be fully screened and connected to the Compax3 housing. We
offer a special Shield connecting terminal as accessory item (ZBH./...).
3.2.4.1 Wiring of the analog inputs
Input IN0 Input IN4
10pF
200KΩ
200KΩ
In0-
200KΩ
X1/4
200KΩ
In0+
X1/3
2
5
0
Ω
Co
m
pax3 Fluid
1nF
22.1KΩ
100KΩ
In4+
22.1KΩ
X1/17
100KΩ
1nF
In4-
X1/18
2.5V
Compax3 Fluid
IN0 to IN3 do have the same wiring!
Pin assignment (see page 16) X1
IIN4 and IN5
(X11/19 and X11/20) have the same
wiring!

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
