2.4. Connect the VMM2404 multiplexing module to a
Development System
It is a good idea to connect the VMM2404 multiplexing module to a development
system (PC, Controller I/O Board, power source, and DLA) to verify your
application. The development system is an ideal environment for creating and
downloading software applications.
The following shows how to connect the VMM2404 multiplexing module in a
development system:

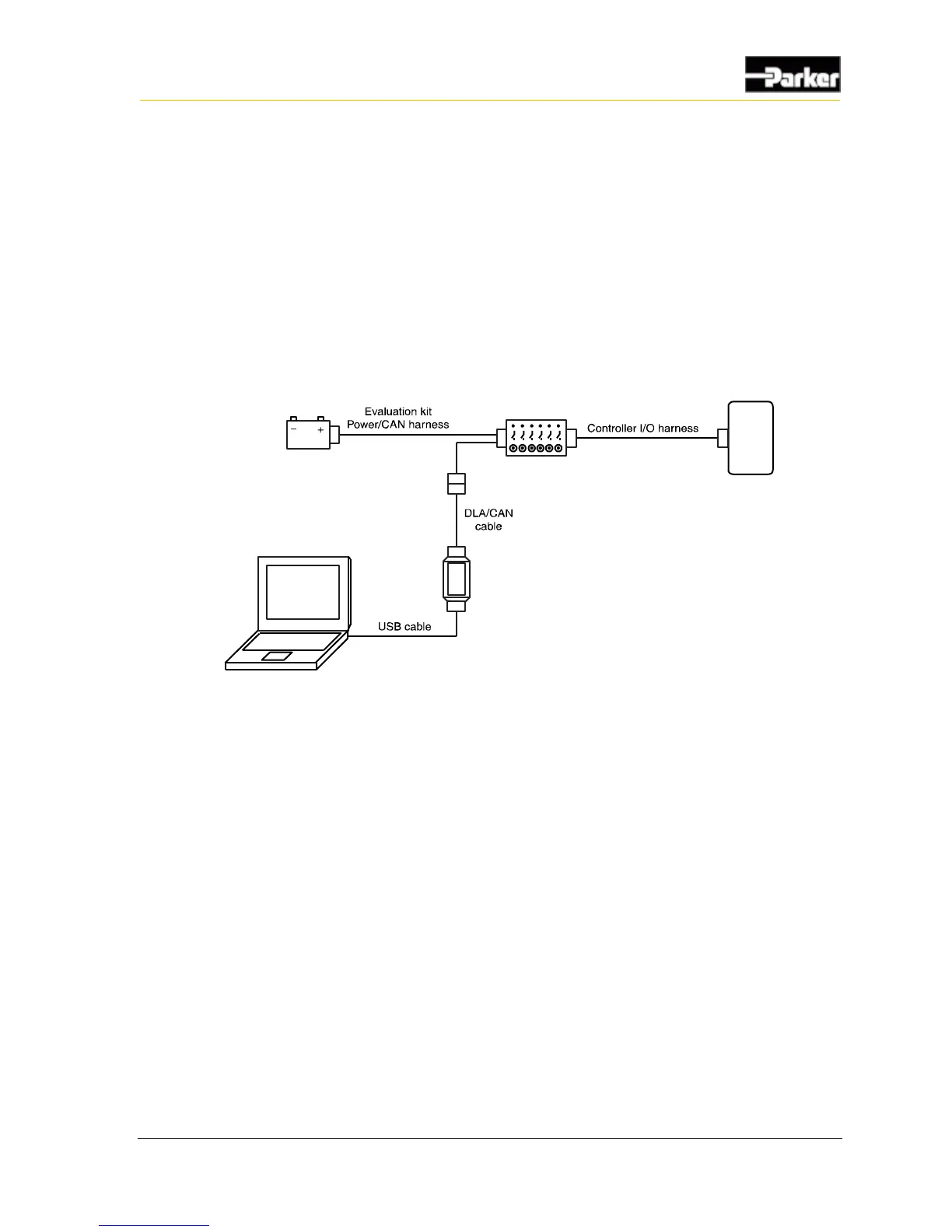

Figure 2: Development system connection
To connect the VMM2404 multiplexing module in a development system, do the
following:
Note: Before connecting anything in the development system, ensure that the
power supply is set to a voltage that is less than 32 V DC.
