Parker Vansco User Manual

12 VMM2404
Inputs
For an input that is active-high
 It must be connected to battery power so that there is a battery connection
when the state of the input changes.
 The power provided to the digital switch connected to the input must be
provided through a fuse in the wire harness.
A typical active-high digital input connection is shown below:
Internal to product
Active High
Digital Input
Battery
Application Switch

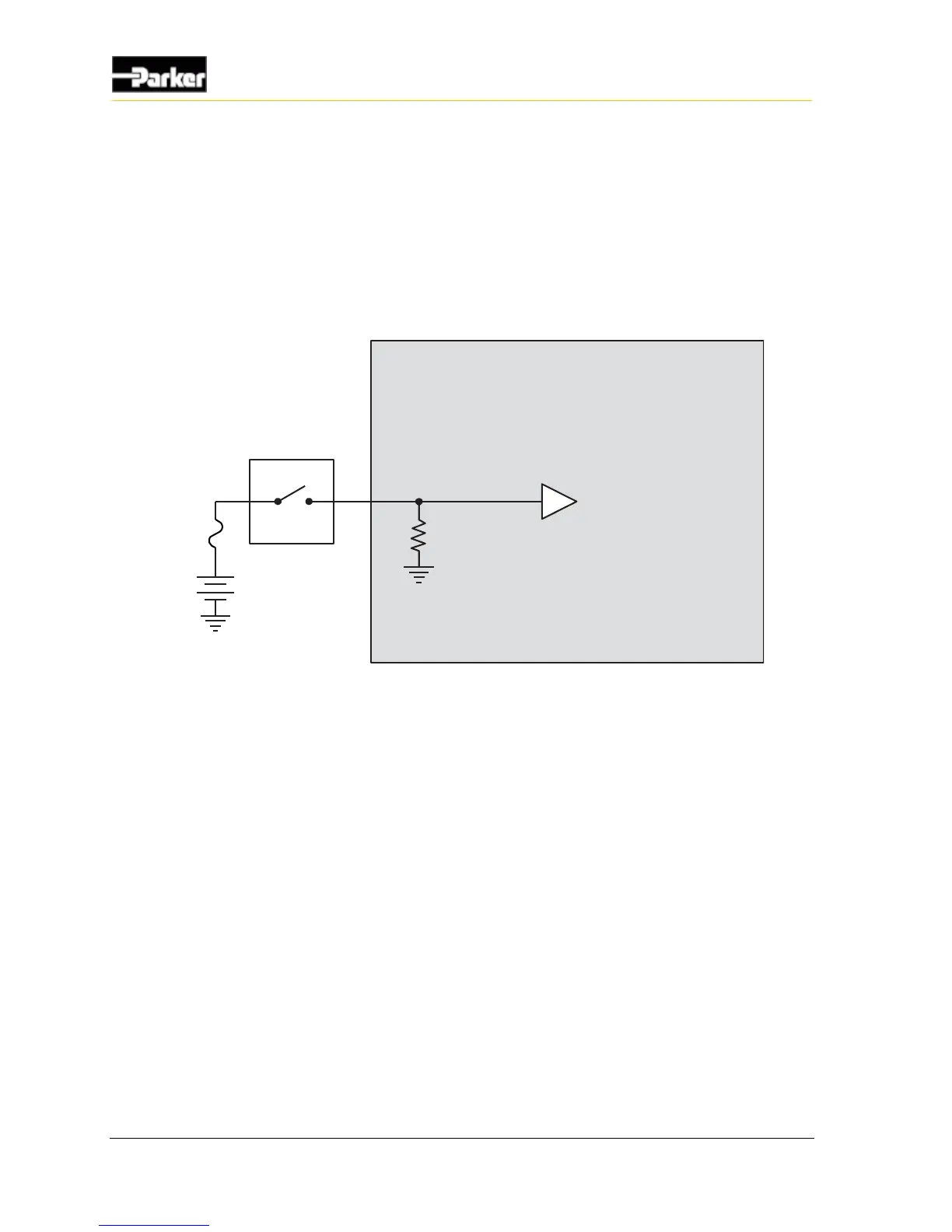

Figure 3: Active high digital input
3.1.2. Multi-Purpose Used as Analog Input
Analog inputs are typically used to read electrical signals that span a voltage
range.
The following multi-purpose inputs can be used as analog inputs:
 INPUT1_ADF to INPUT15_ADF
