The VMM2404 has two Ampseal connectors, as follows:
One 35-pin connector – Black (J1): AMP 776164-1.
One 23-pin connector – Black (J2): AMP 770680-1.
Both connectors have pins that connect to inputs, outputs, power, and the
Controller Area Network (CAN). Each connector has unique keying that prevents
you from incorrectly mating the connectors to the vehicle harness. The vehicle
harness should be designed to interface with both connectors.

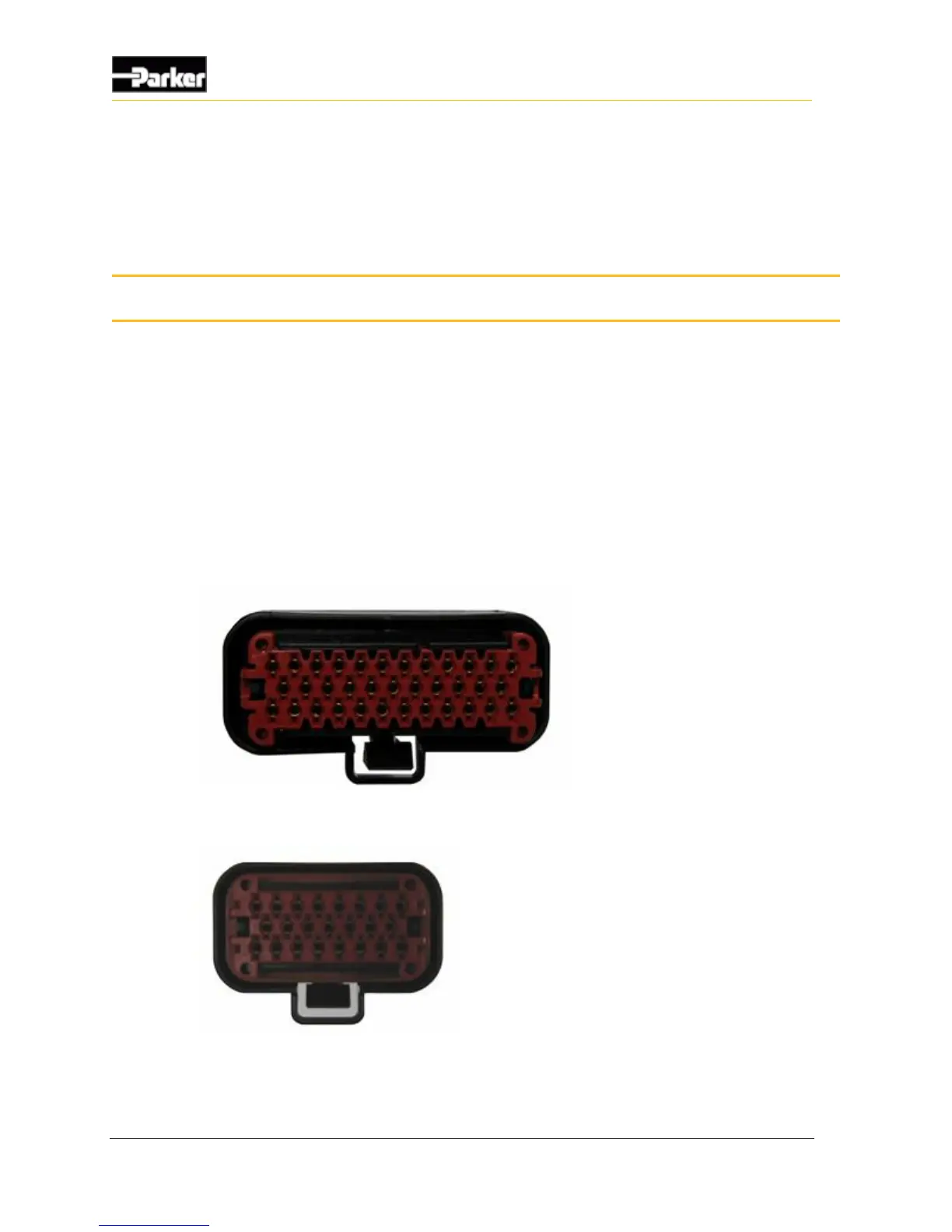

The following are pictures of the required mating connectors:
Figure 17: Black (J1) connector
Figure 18: Black (J2) connector
