Outputs
4.2.2. Low-Side Outputs with Current Sense Configuration
Options
There are two programmable gain and attenuation factors that allow you to
convert the maximum voltage expected on the low-side outputs to as close to 3.0
V as possible (to optimize the voltage resolution).
Gain and Attenuation for Low-Side Outputs with Current Sense
Amp Gain
Max Current (A)
Attenuation 1
Gain 1
6.008
5
ON
ON
10
3
OFF
OFF
4.2.3. Low-Side Outputs with Current Sense Installation
Connections
When connecting low-side outputs, note that
 Low-side outputs are connected to a common internal ground point that is
connected to the battery ground (GND).
 Low-side outputs provide switched ground to any load type in a vehicle.
 Low-side outputs can sink up to 3.0 A.
 When connecting a load to a low-side output, ensure the load will not drive
currents greater than the maximum specified peak current, or maximum
specified continuous current.
The following shows a typical low-side output connection:
Internal to product
Low-Side
Output
Application
Load
Battery

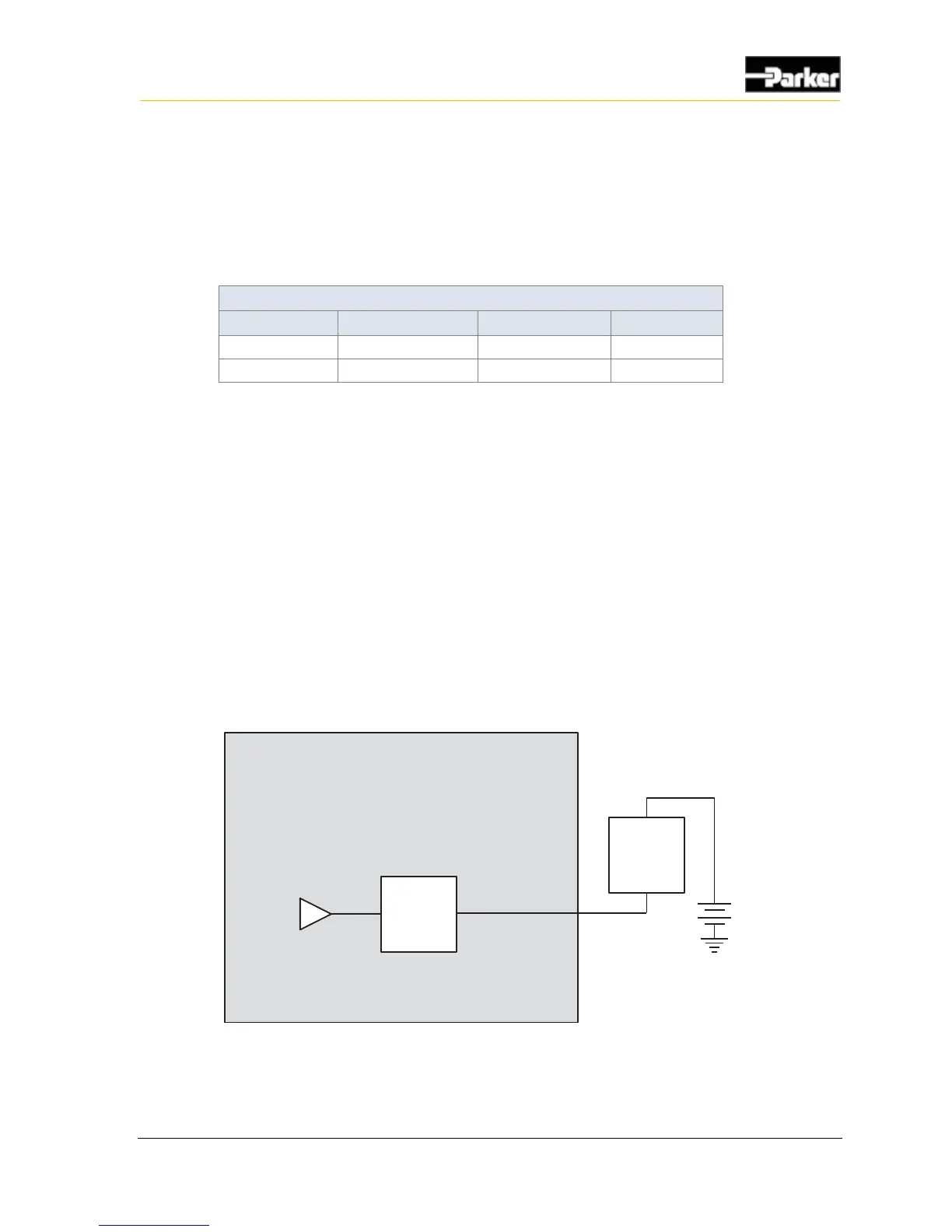

Figure 13: Typical low-side output connection
