Application Examples
The following shows a typical voltage sensor connection:
Internal to product
Analog Input
Voltage
Sensor

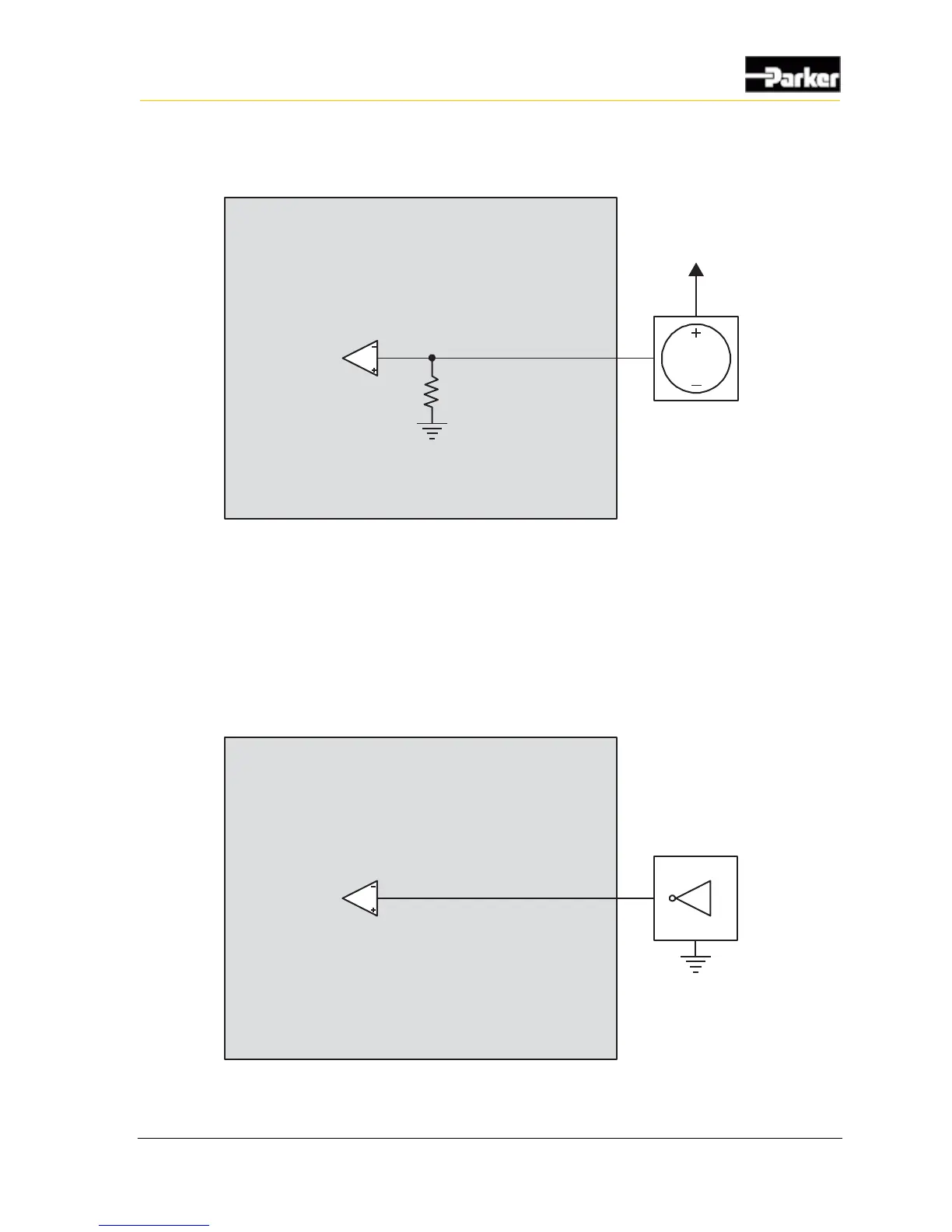

Figure 31: Voltage sensor connection
10.7.6. CMOS
A sensor with a CMOS-type output drives a high and low signal, and is typically
used in digital and frequency applications, and therefore, CMOS sensors can be
wired directly to digital and frequency inputs.
The following shows a typical CMOS sensor connection:
Internal to product
Digital or Frequency Input
CMOS
Figure 32: CMOS sensor connection
