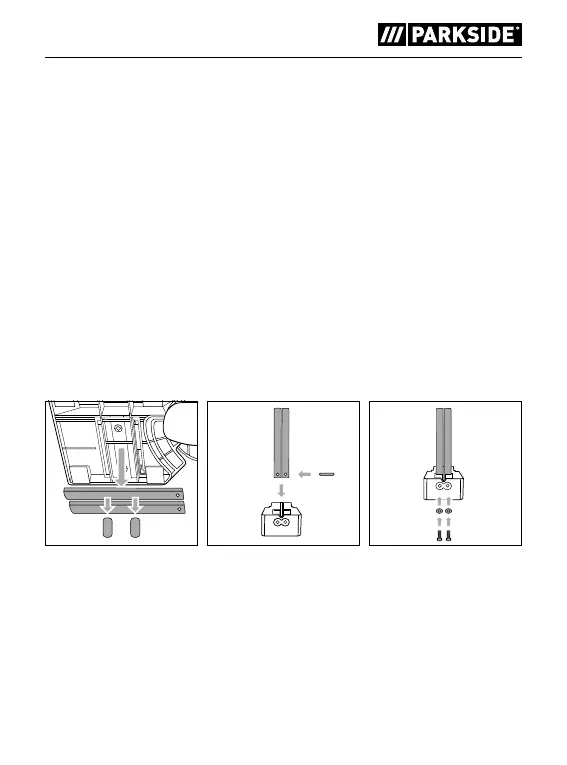

Assembly
♦ Remove the retaining clips 8 from the underside of the product
and remove the guide rods 7 (see fig. 1). Dispose of the retaining
clips 8.
♦ Take two guide rods 7, with the rounded side facing each other,
and push a spacer rod r into both guide rods 7 (see fig. 2).
♦ Insert the two guide rods 7 into cutting guide element A 9
(see fig. 2).
♦ Place a washer e into the recess of cutting guide element A 9
and screw a screw w with the hex key t into the guide rods 7
(see fig. 3).
♦ Repeat the process, to attach the two remaining guide rods 7
to cutting guide element B 0.
Fig. 1 Fig. 2 Fig. 3
