Measuring angles
NOTE
►
Internal and external angles from 85° to 180° can be measured.
► To measure an external angle, you may need to remove cutting
guide elements A 9 and B 0 (if fitted).
♦ Undo the retaining nut 6 one turn only so that the screw cannot
fall out.
♦ Place the product in or around a corner to measure an inside or
outside angle. The movable arms 1 must lie flat against the wall
(see fig. 4).
♦ Tighten the retaining nut 6. The arrows on the movable arms 1
point to the scale where you can read off the measured angle
(see fig. 5).

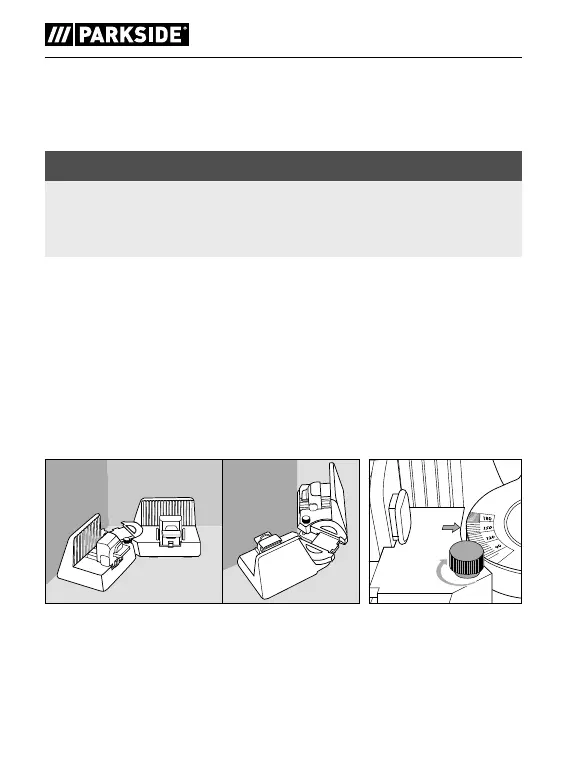

Fig. 4 Fig. 5
