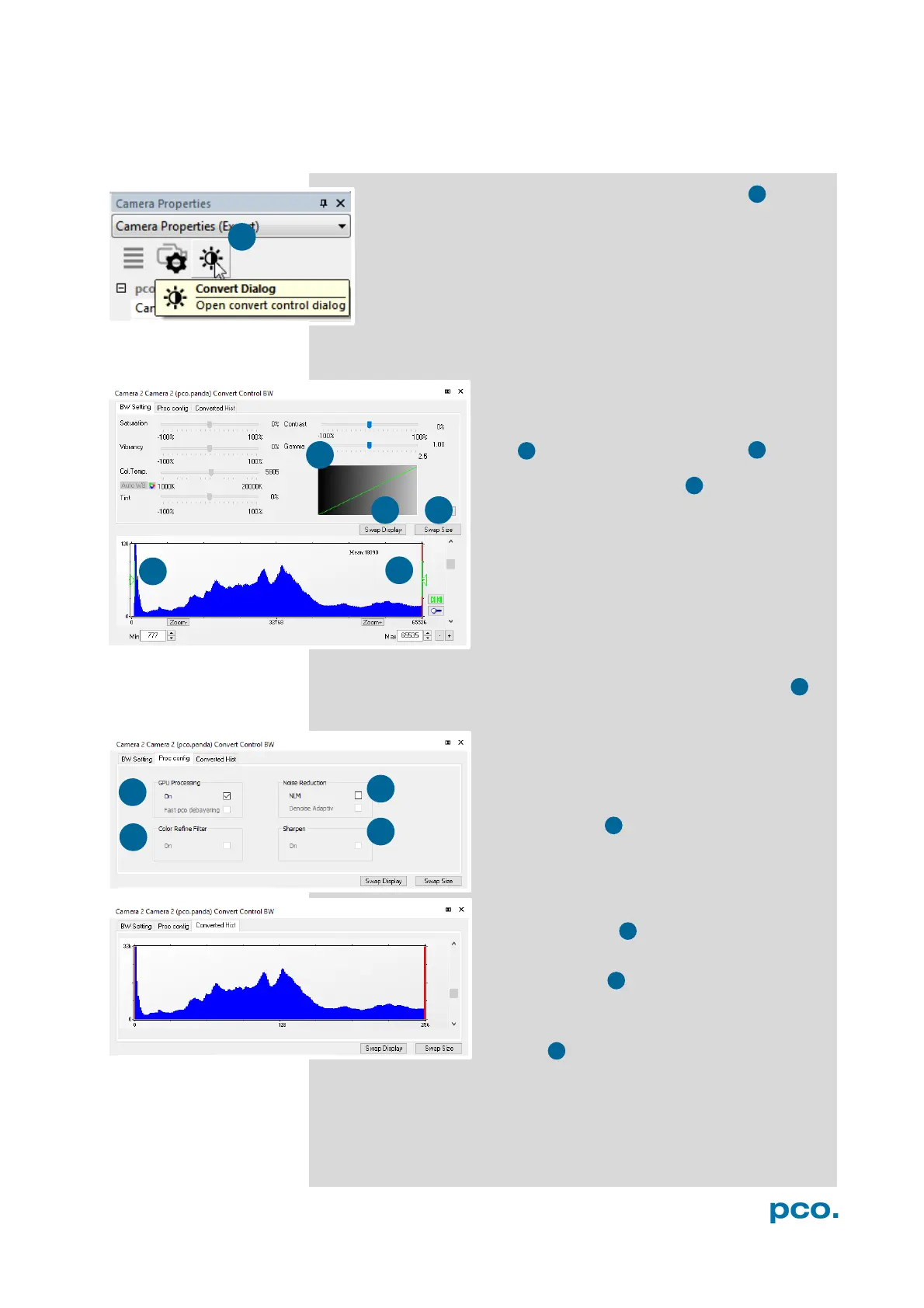

6.3.8 CONVERT CONTROL DIALOG
Start the Convert Dialog with the black / white button .
The user can influence how the 16 bit intensity values (x-axis) of the
original image are displayed in 8 bit values (y-axis) in different ways.
BW Settings
It is possible to hide the histogram of original
data and to switch tab / histogram .
Green sliders in histogram
Left slider: minimum controller (corresponds to
value 0 of the 8 bit display). Values below that
mark are set to 0, i.e. displayed as black.
Right slider: maximum controller (corresponds
to value 255). Values above that mark are set to
255, i.e. displayed as white.
The values in-between are converted into a value between 0 and 255
according to Contrast and Gamma settings. See the small graph ,
which reflects the calculation.
Proc. Config (Process configuration)
Due to proprietary high-end algorithms used
for these image processing features, no
detailed description is given here.
Converted Hist
This tab shows the histogram of converted data.
GPU Processing
On: S
witch on in order to significantly reduce
processing time (increases refresh rate of the
live image). Only for NVIDIA graphic cards.
Fast pco debayering: n/a (only color cameras)
Color Refine Filter
On: n/a (only color cameras)
Noise Reduction
NLM: Non local means algorithm
Denoise Adaptive: not available
Sharpen
On: not available
