1. The set-up arm is operated through a two-position valve.
2. When the machine is E-stopped or stopped due to a product jam, the valve
controlling the set-up arm cylinder immediately shifts to exhaust the air
from both sides of the cylinder. The set-up arm may lower.
3. To lock the set-up arm in the upright position for set-up or maintenance
purposes use the “locking key” provided.
4. Raise the set-up arm and insert the “key” through the front keyhole slot,
through the slotted framework of the set-up arm, then through the back
keyhole slot.
5. When finished, make sure to remove the key and lower the set-up arm before
starting the machine
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
Machine Safety
13

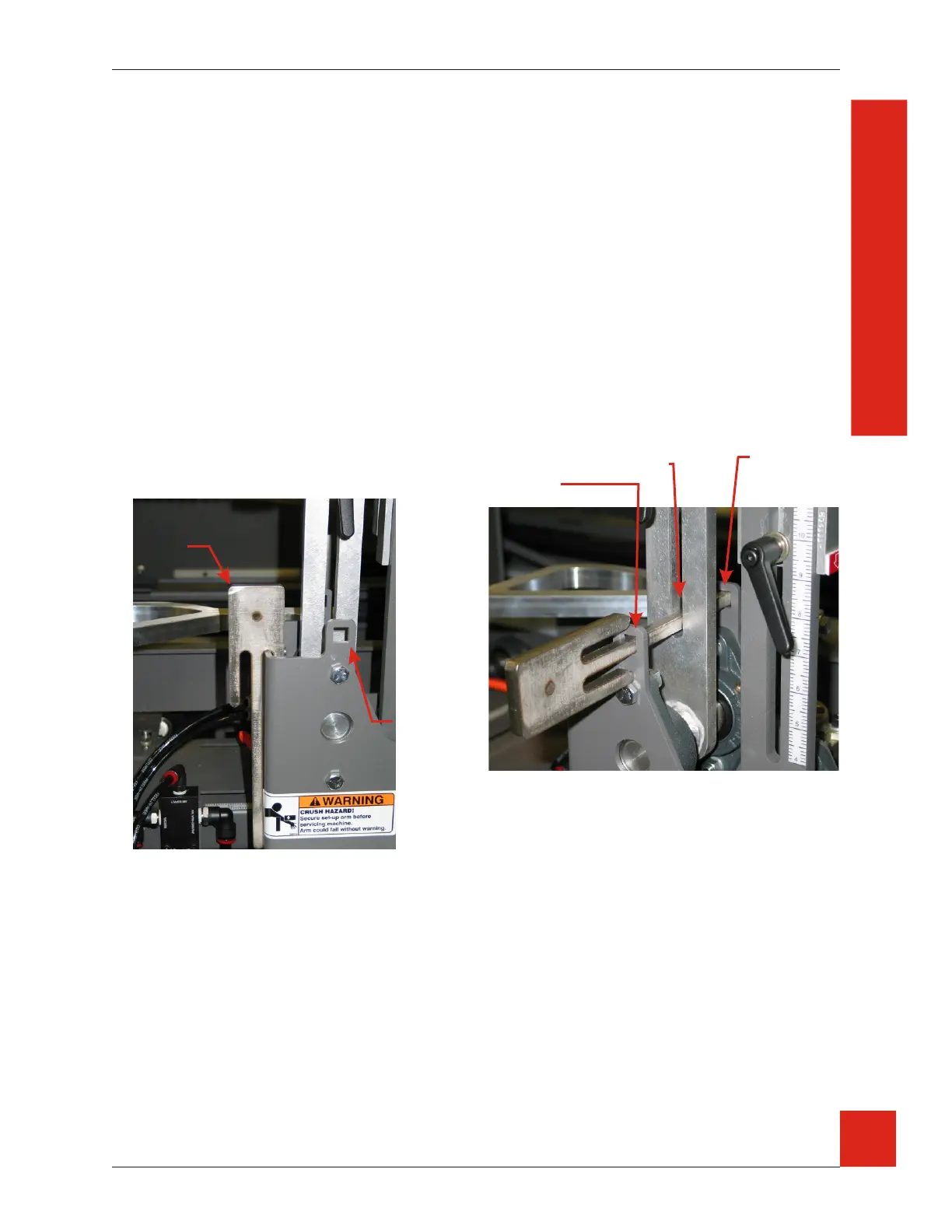

Fig. 4: Set-up Arm Locking “key”
stored on set-up arm frame
Key
Keyhole
slot
Fig. 5: Set-up Arm Locking “key” installed
Keyhole
slot
Keyhole slot
Slot in Frame
