3. The pickoff arm pulls the knocked down blank into the setup area with the
leading edge constant.
4.
The pickoff arm retracts, and the setup arm grabs the case.
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
28
ecneuqeS gnitarepO

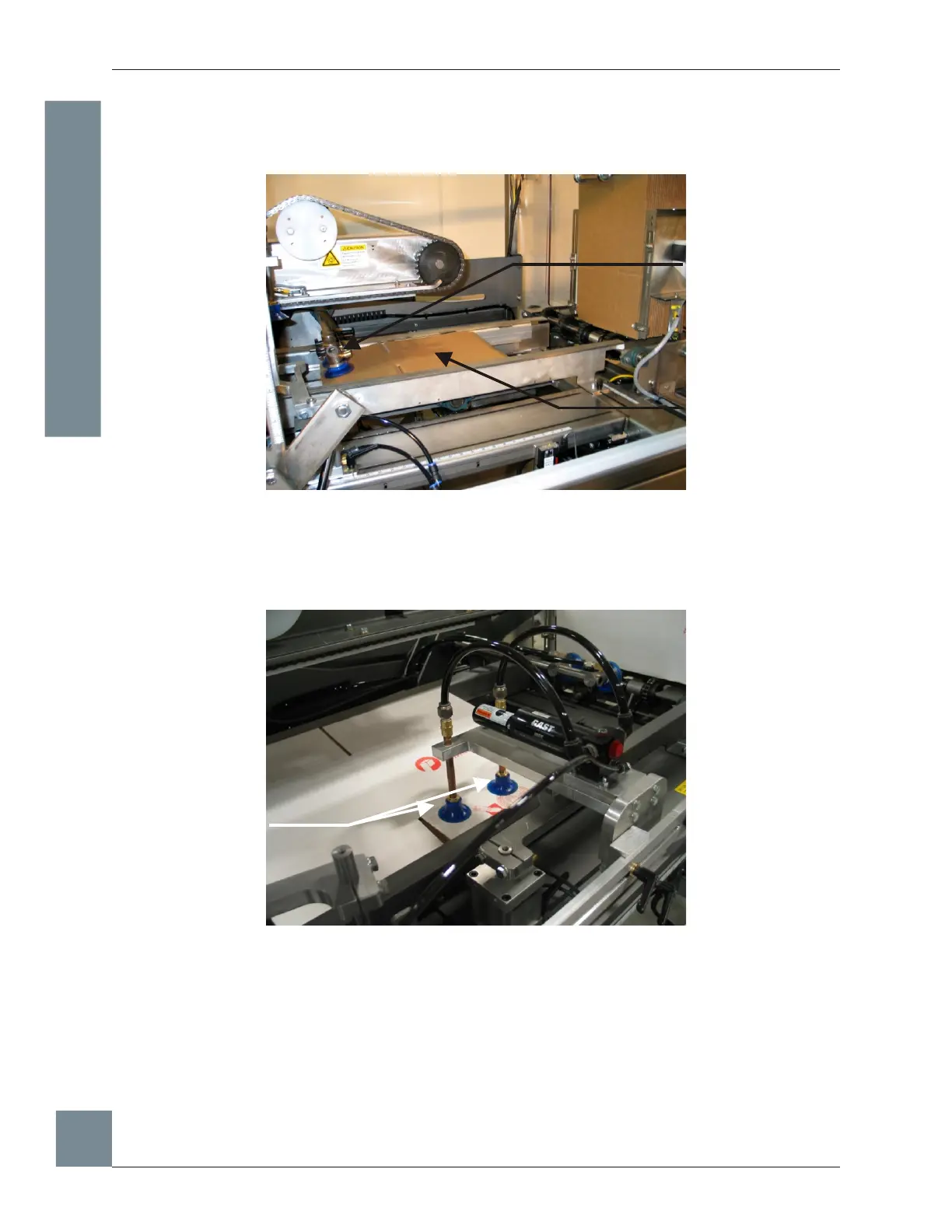

Fig. 19: Blank Placed into Set-Up Area
Pickoff Arm
KD Blank
Fig. 20: Setup Arm Grabbing Case
Vacuum Cups
on Setup Arm
Assembly
