5. The lower major flap kicker retracts
6.
The Set-up Arm pulls the upper major flap into position.
a. Lower vacuum
cups hold the
lower major flap
in position.
b. This action opens
and positions the
major flaps.
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
Operating Sequence
29

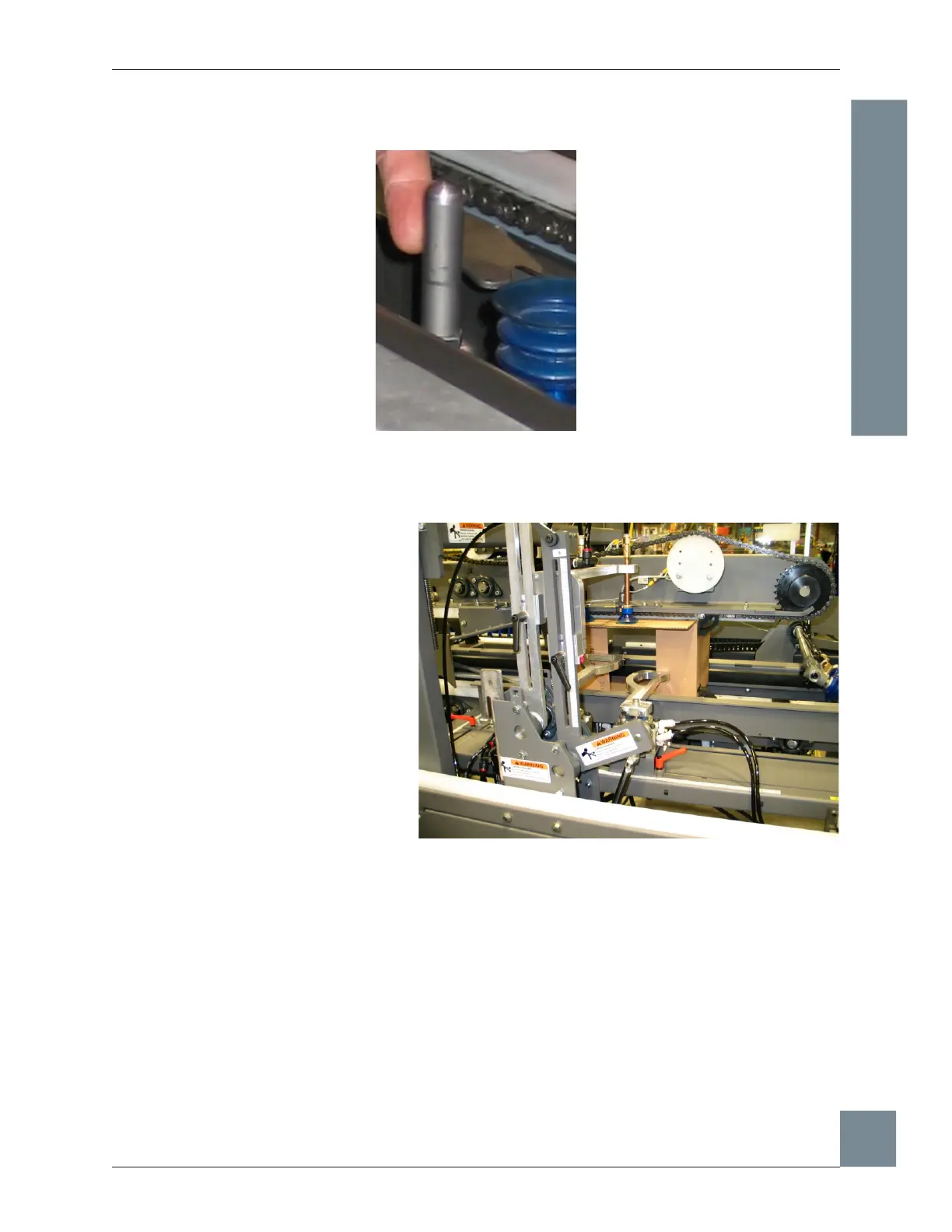

Fig. 21: Lower Major Flap Kicker
Fig. 22: Setup Arm Erecting the Case
