7. Kickers close the leading and trailing minor flaps.
8. The flight lugs move the case to the
plows.
9. The Lower Major Flap Kicker actuates
to contain the minor flaps.
10. The plows connect with the case and maintain.
11. The Pressure sensitive tape system seals the case.
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
30
ecneuqeS gnitarepO

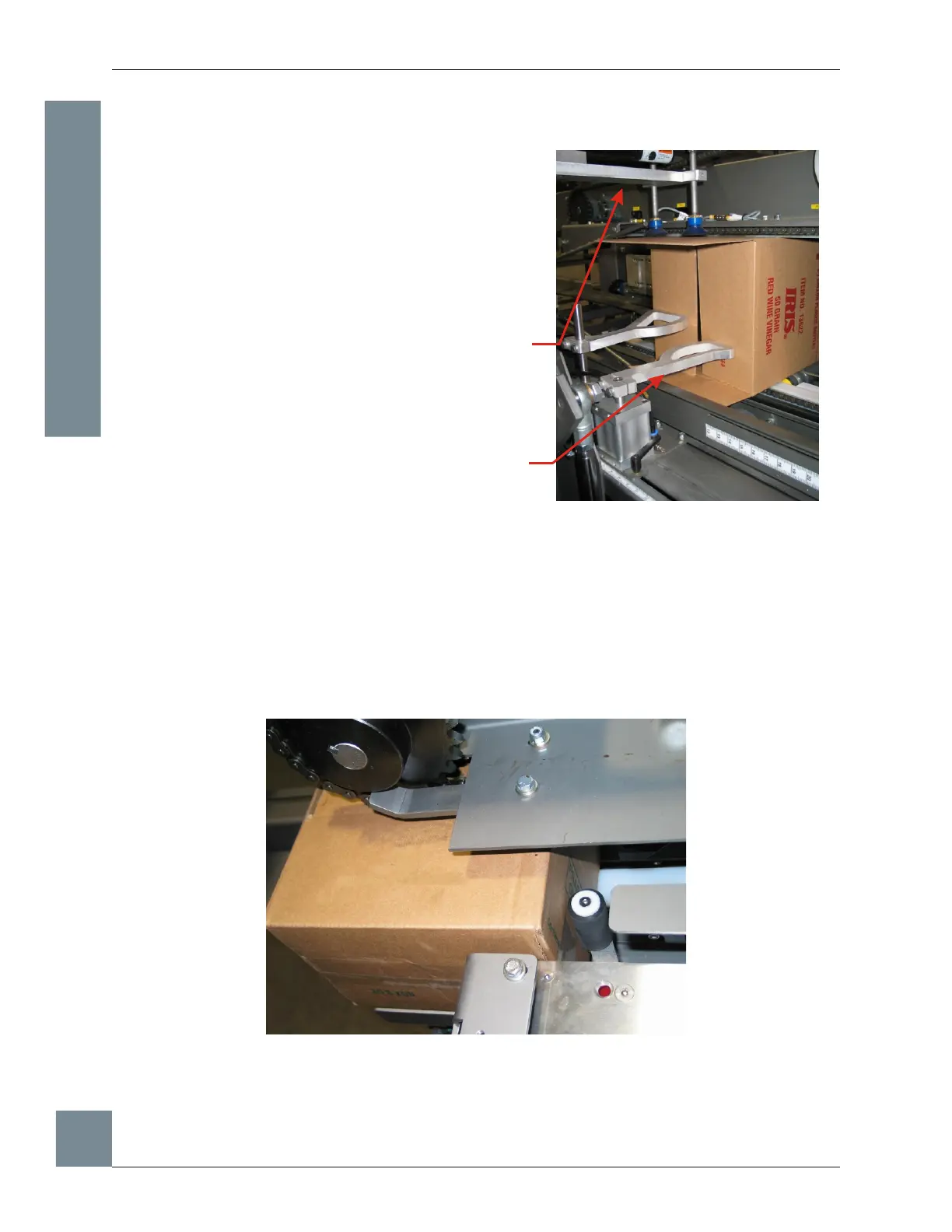

Fig. 23: Pressure Sensitive Tape Station
Fig. 24: Kickers closing Minor
Flaps
Kicker
Set-Up Arm
