Pearson CE35-T Case - Page 63

Magazine Side Guide (long side guide)
1. Loosen the quick-release handles
2. Slide the magazine side guide to the appropriate dimension of the case
(either constant side or non-constant side). See Panelview case setup values
for scale settings on pre-tested cases.
3. Tighten the quick release handles.
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
Changeover Procedures
47

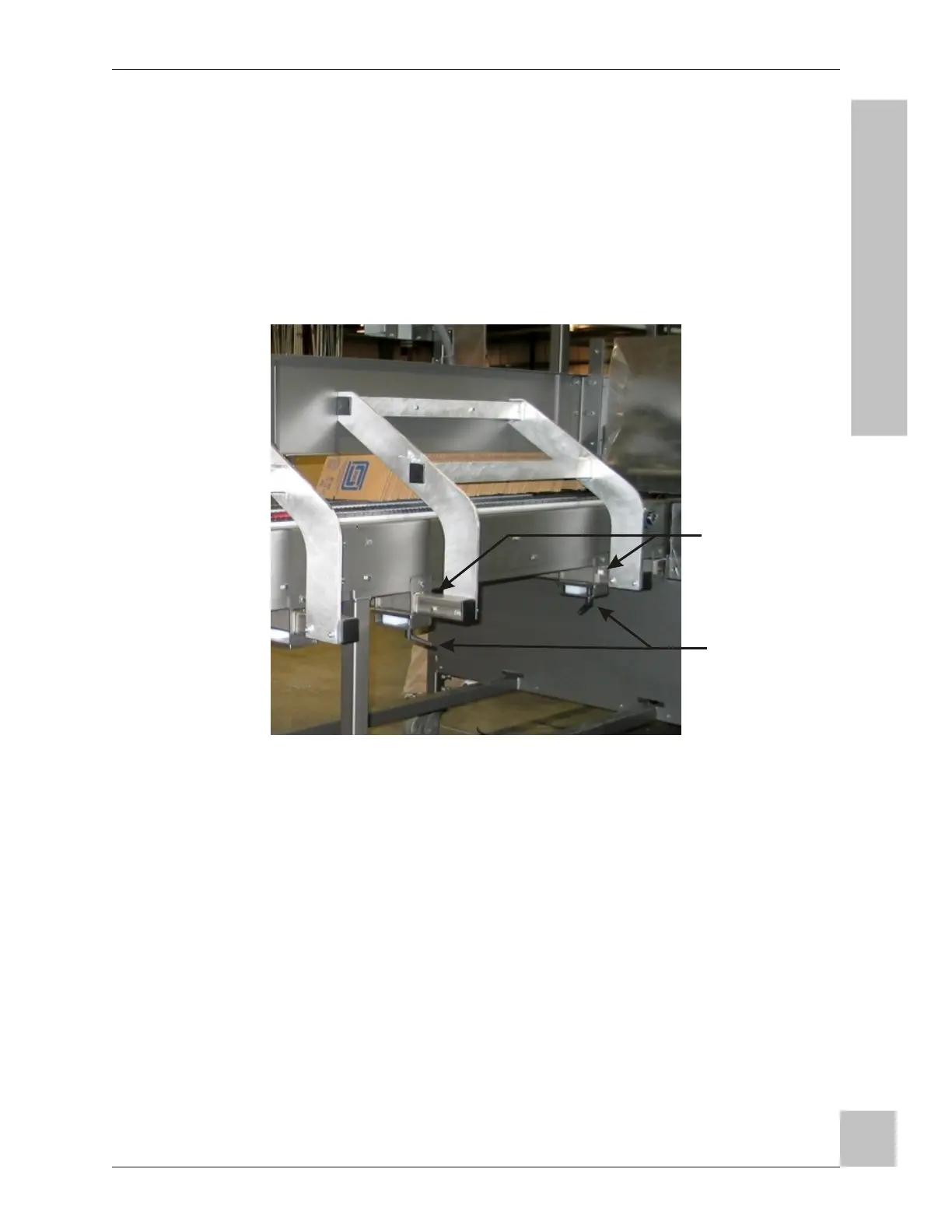

Fig. 37: Magazine Side Guide (Long Side Guide)
Scale and
Pointer
Quick-release
Handles
