Pearson CE35-T Case - Page 64

Short Side Guide
1. Loosen the quick-release handles
2. Slide the short side guide to the appropriate dimension of the case (either
constant side or non-constant side). See Panelview case setup values for
scale settings on pre-tested cases.
3. Tighten the quick-release handles.
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
48
serudecorP revoegnahC

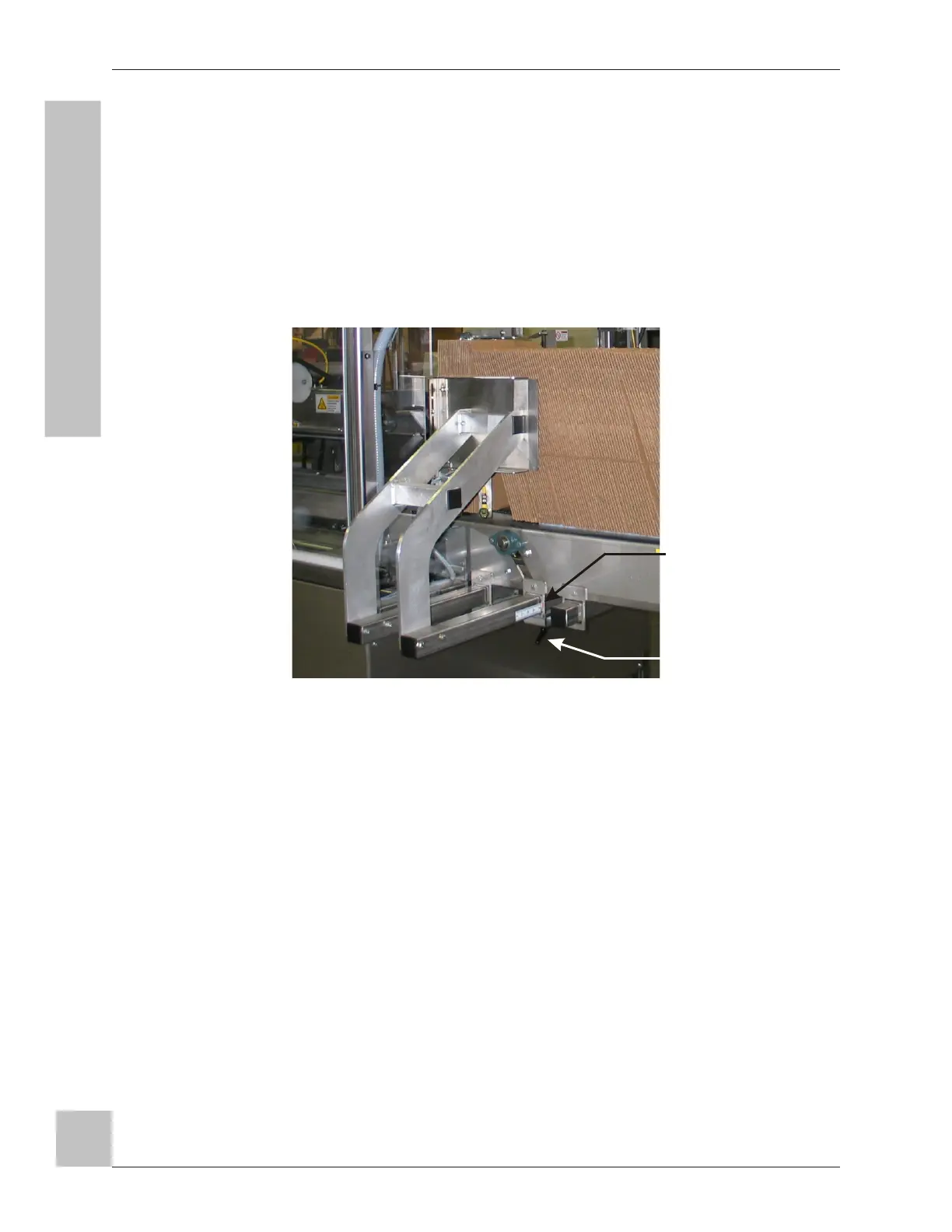

Fig. 38: Short Side Guide
