Box Guide
Note: This is not a scaled adjustment.
1. The box guide should be adjusted so it supports the case past the
compression station. When the case is almost to the tipoff backstop, the
trailing edge of the case should go past the box guide allowing it to roll out
and drop onto the discharge conveyor.
2. Loosen the two quick-release handles.
3. Adjust to the correct position to enable the case to tipoff the discharge.
4. Tighten the quick-release handles.
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
Changeover Procedures
65

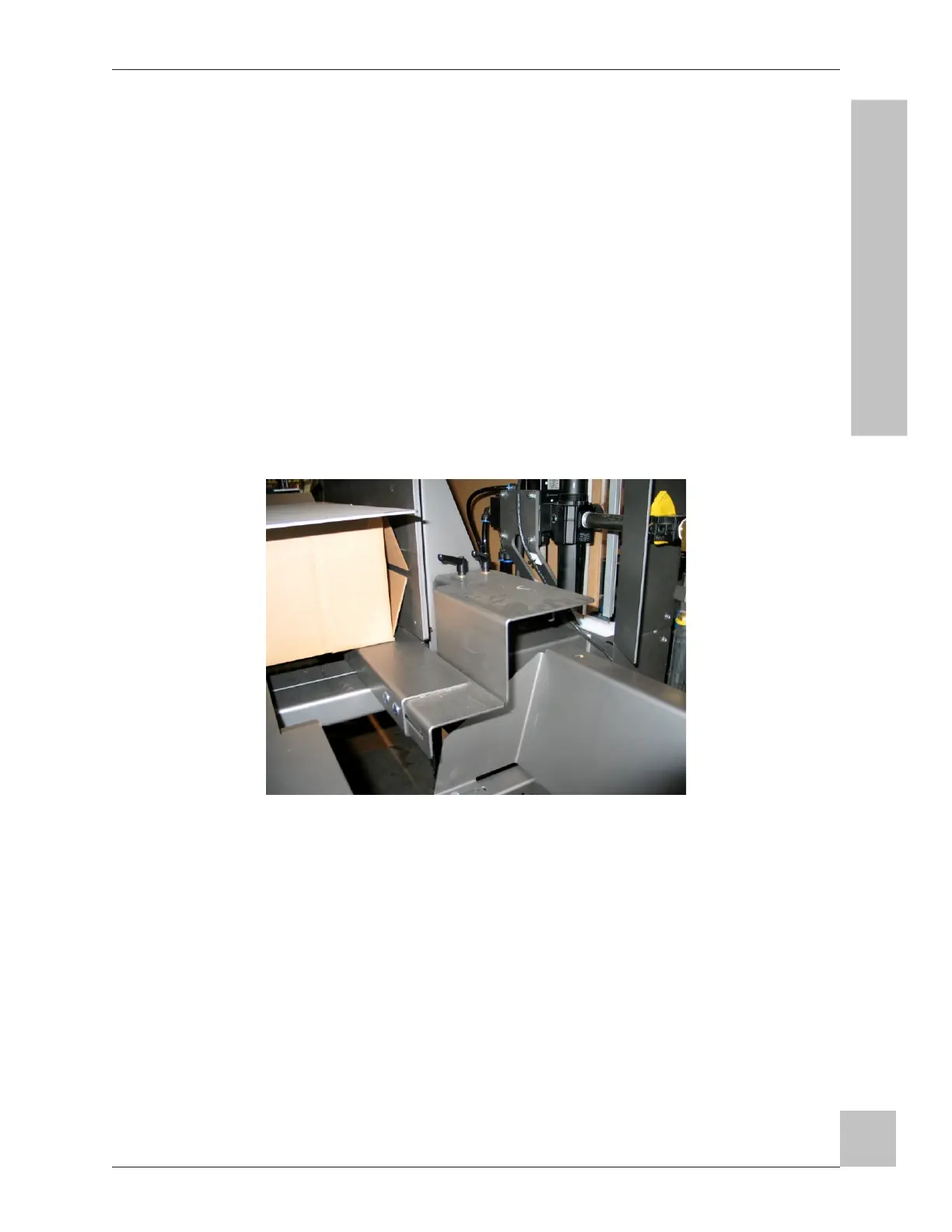

Fig. 62: Box Guide
