Phase Manager Display - Semi-Auto
1. The Phase Manager Monitor screen
displays a flow chart of the various
machine functions while the machine is
in semi-auto mode. Each circle on the
flow chart will illuminate as that
function happens. This is a status screen
only.
2. Press Auto Mode button to go to the
Phase Manager Monitor - Auto screen
3. Press Manual Mode button to go to the
Phase Manager Monitor - Manual screen.
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
Human-Machine Interface
(HMI)
79

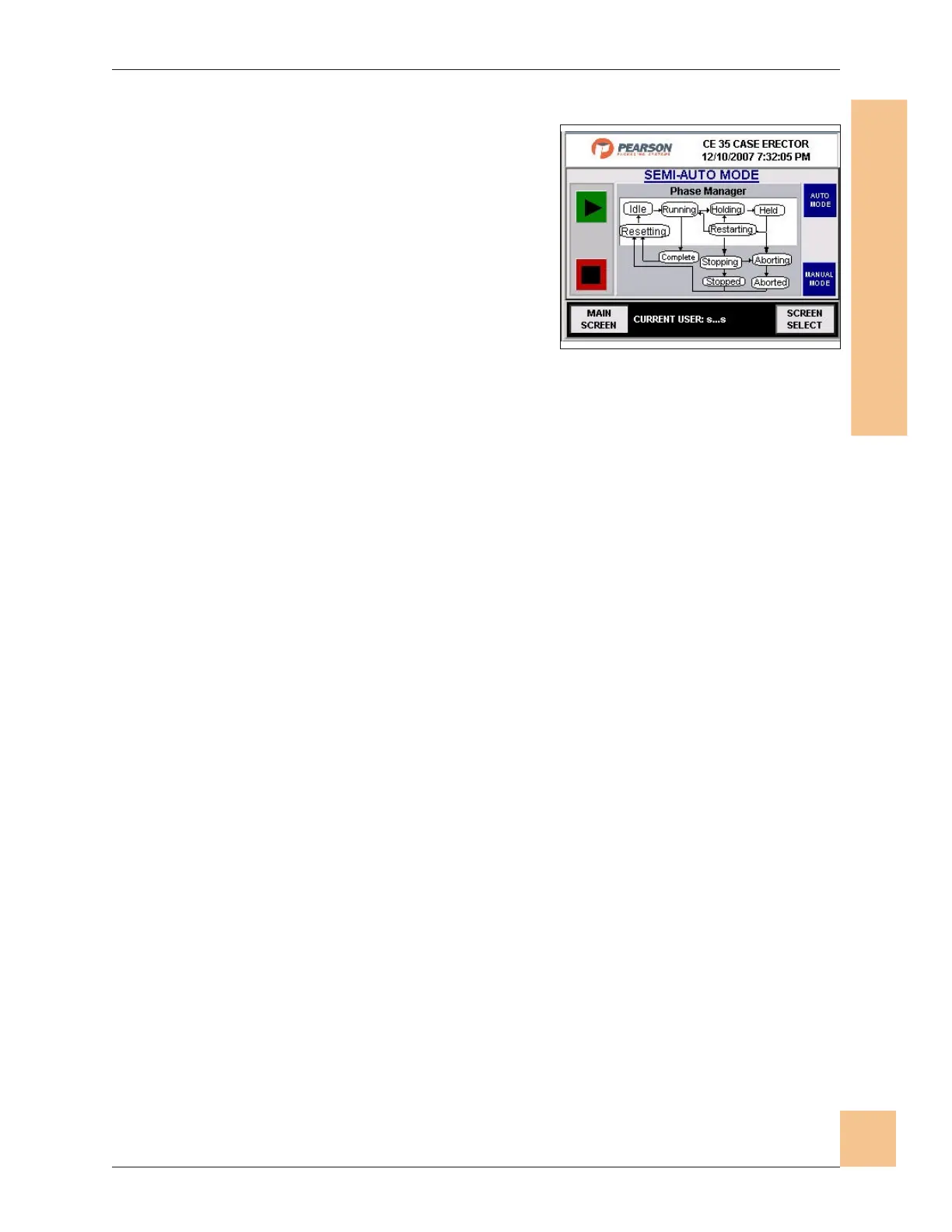

Fig. 75: Phase Manager Display -
Semi-Auto Screen
