2 Set the brake lever angle as indicated in the
table.

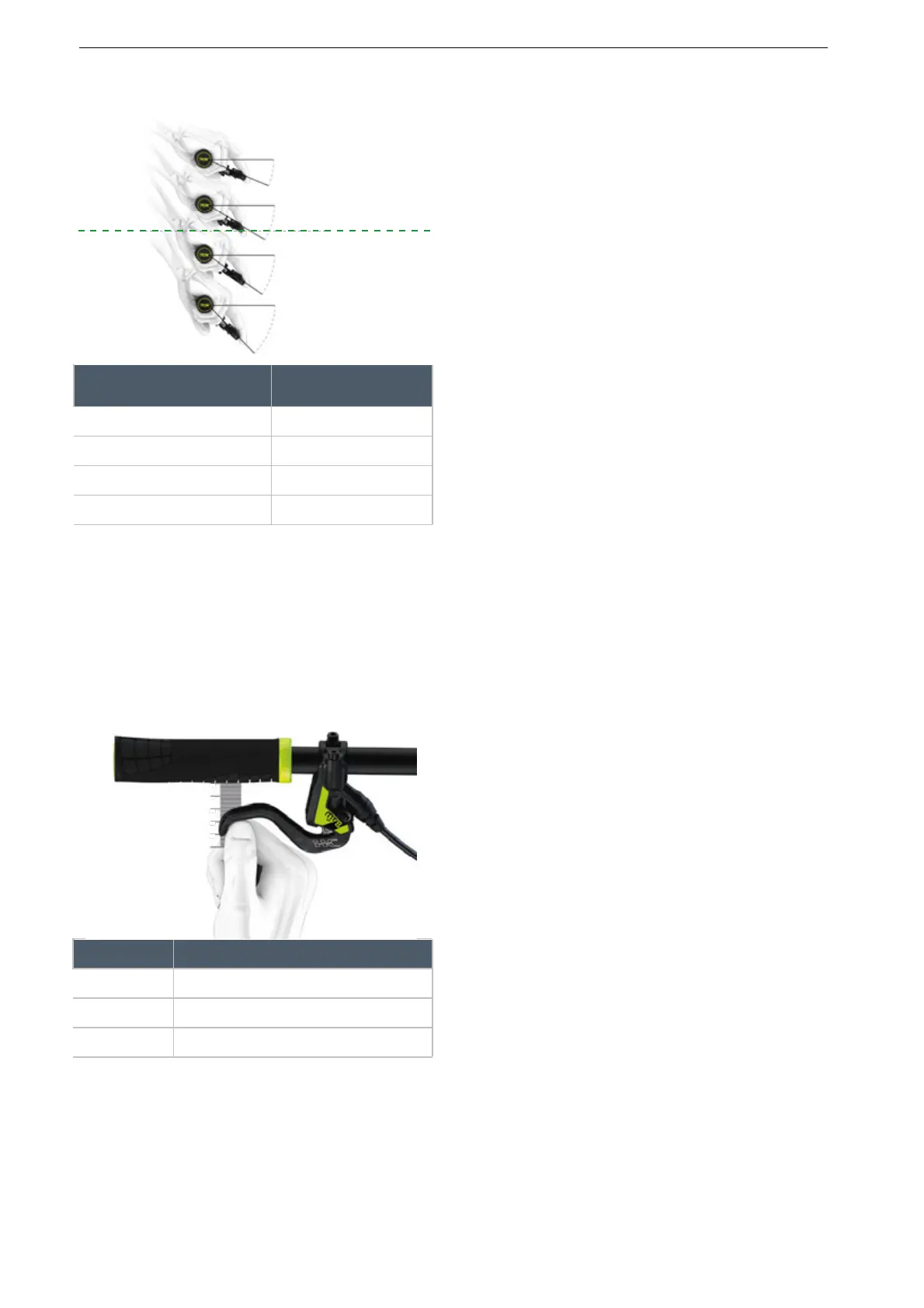

Figure 110: Brake angle
6.5.9.3 Determining the grip distance
1 Measure hand size using the grip distance
gauge.
2 Adjust the grip distance at the pressure point
based on the hand size.
Figure 111: Brake lever position
Saddle-handlebar height
difference (mm)
Brake angle
>10 20°…25°
0…10 25°…30°
0…-10 30°…35°
< -10 35°…45°
Hand size Grip distance (cm)
S2
M3
L4
20 – 25° > 10 cm
25 – 30° 0 – 10 cm
30 – 35° 0 – 10 cm
35 – 45° > 10 cm
