Maintenance

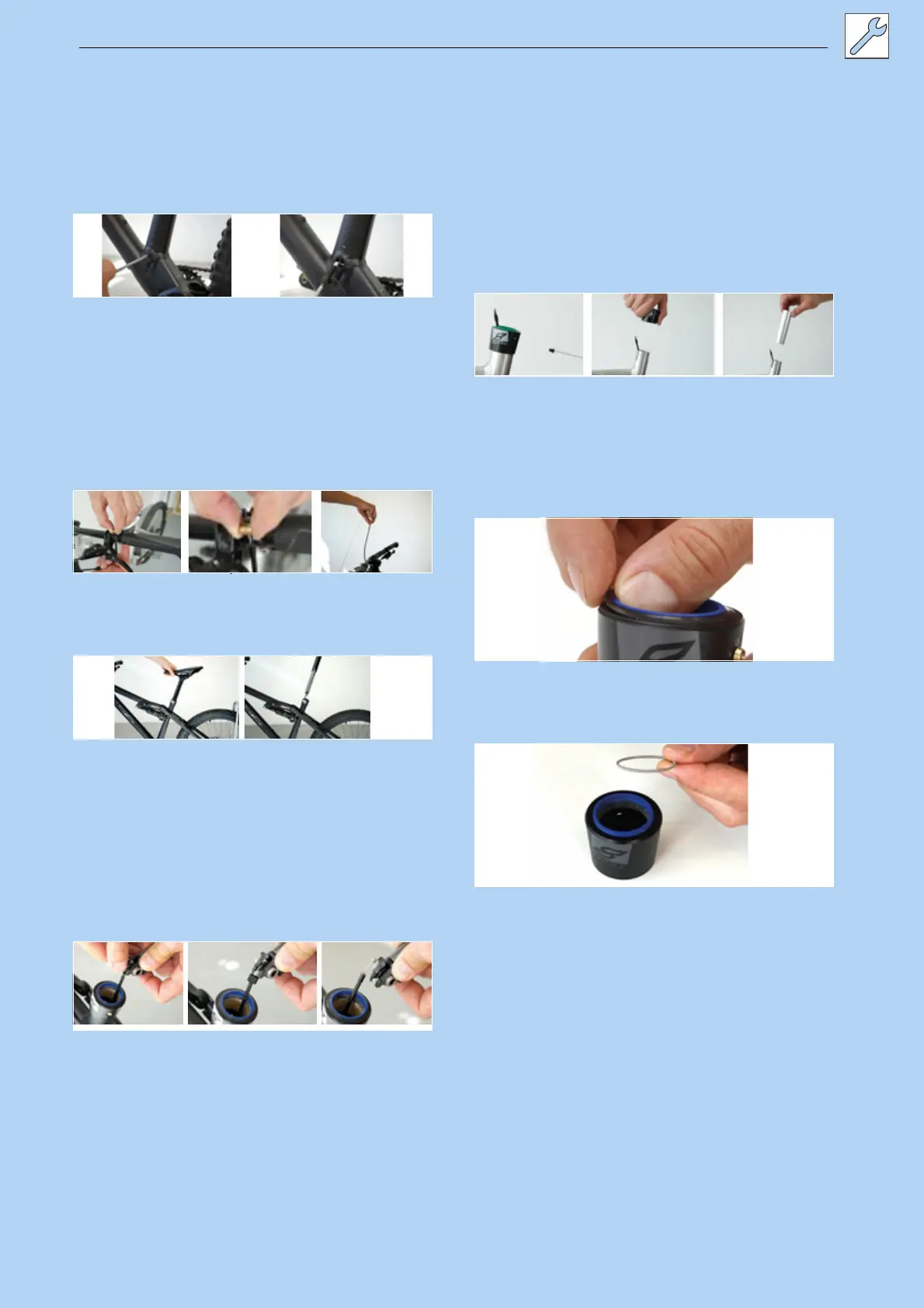

8.5.8.5 eightpins H01 seat post
Only applies to pedelecs with this equipment
Removing the seat post
1 Use a 5 mm hex spanner to unscrew the
Postpin axle.
Figure 201: Undoing the seat post
Detach Bowden cable from the on-bar remote
control on the seat post.
Detach the operating lever from the handlebars
in the case of under-bar-remote control on the
seat post. Activate operating lever. Hold
Bowden cable fastener and pull or tilt forwards.
.
Figure 202: Unfastening the remote control
2 Pull seat post slowly out of the frame.
Figure 203: Removing the seat post
3 Pull out the special end cap for the outer sleeve
from the bracket.
4 Detach the Bowden cable head from the
hydraulic activation lever bracket.
5 If necessary, operate the lever by hand to
make more space for detaching it.
Figure 204: Removing the Bowden cable
Removing the outer sleeve and slide bushing
1 Use a 3 mm hex spanner to remove
attachment screw on the outer sleeve.
2 Detach outer sleeve by pulling upwards with
your hand.
3 Pull slide bushing tube out of the seat tube.
Figure 205: Removing the outer sleeve and slide bushing
Caring for the outer sleeve
1 Push the blue wiper towards the edge.
2 Detach the seal lip ring.
Figure 206: Detaching the seal lip ring
3 Detach spring washer or outer sealing ring.
Figure 207: Removed spring washer
