Pegasus Evo CX - Fit Battery Cover Onto Bosch Powertube 625 Battery (Horizontal)

MY22P01 - 12_1.0_31.08.2021
75
Assembly
5.3.2.2 Fit battery cover onto Bosch PowerTube 625 battery (horizontal)
Only applies to pedelecs with this equipment
1 Detach the upper interface (lock side) from the
BOSCH PowerTube 625 battery with a TORX®
T20 wrench.

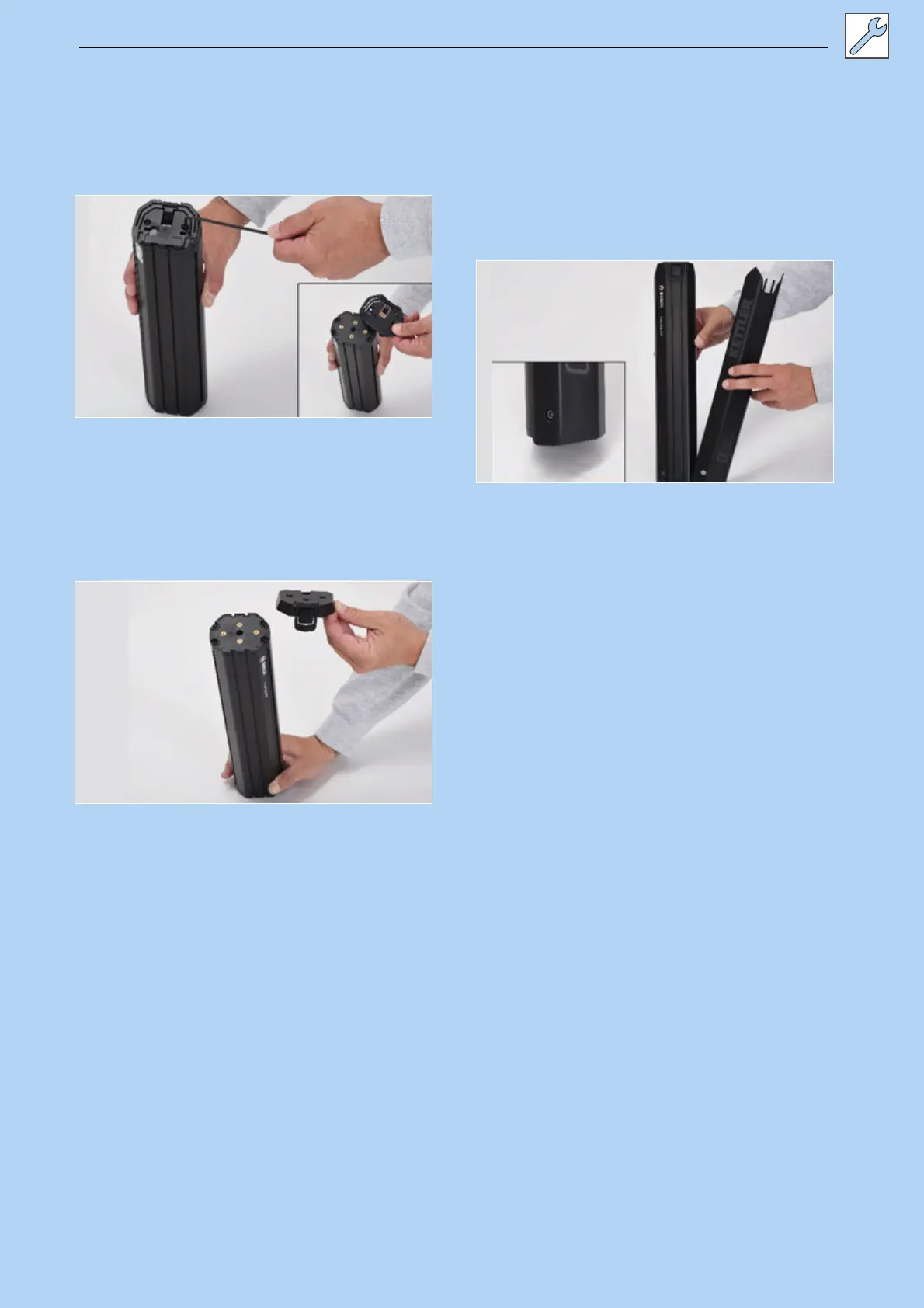

Figure 62: Detaching the upper interface
2 Screw the battery mounting plate to the
BOSCH the PowerTube 625 battery with
original BOSCH screws (M4 × 8 T20). In doing
so, ensure that the removal tab faces the front
of the battery.
Figure 63: Fitting the mounting plate
3 Press to push the battery cover onto the
battery. In doing so, ensure that the battery
On-Off switch fits through its designated slot in
the cover.
 The battery cover will lock into the fitting
grooves on the battery.
Figure 64: Pushing the battery cover onto battery
 The battery can now be inserted into the frame.
