MY22P01 - 12_1.0_31.08.2021
78
Assembly
5.3.4 Installing the wheel in the SUNTOUR fork
Only applies to Suntour forks with this equipment
5.3.4.1 Screw-on axle (12AH2 and 15AH2)
Only applies to Suntour forks with this equipment
Before installing the wheel, ensure that the O-ring
is in the right position on the thread piece.
1 Insert the front wheel into the fork ends.
2 Insert the axle into the hub on the drive side.

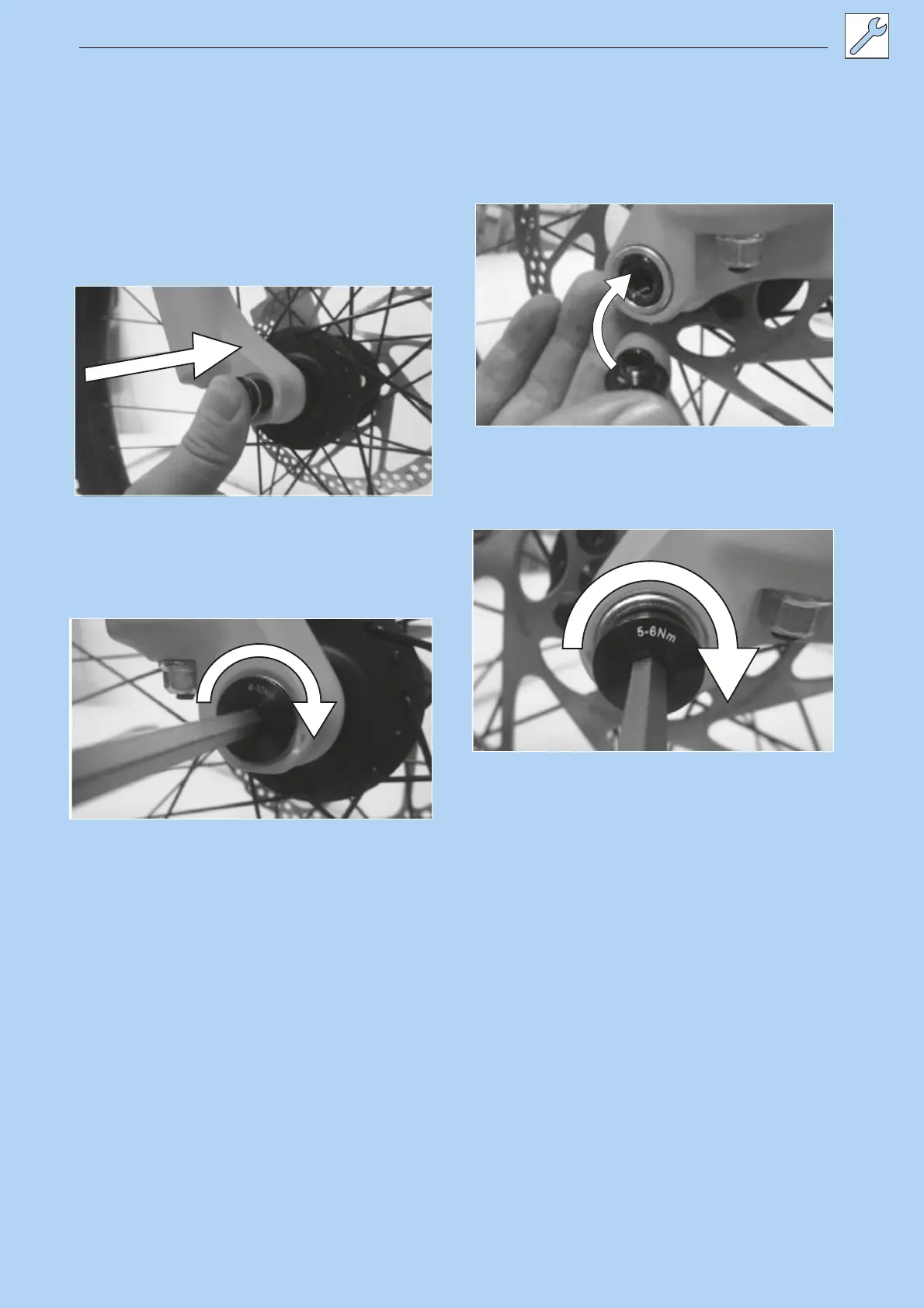

Figure 71: Inserting the axle in the direction of the arrow
3 Use a 6 mm hex key to tighten the axle using
between 8 and 10 Nm. The axle thread must
be visible.
Figure 72: Tighten the axle in the direction of the arrow
4 Insert the securing screw on the non-drive
side.
Figure 73: Pushing the quick release lever into the axle
5 Tighten the securing screw with a 5 mm hex
key using between 5 and 6 Nm.
Figure 74: Tightening the securing screw
The wheel is now fitted.
