6.5.12.1 Adjusting the Suntour fork steel suspension
Only applies to pedelecs with this equipment
1 You will find the sag setting wheel (1) beneath
the plastic cover on the crown. Remove the
plastic cover.

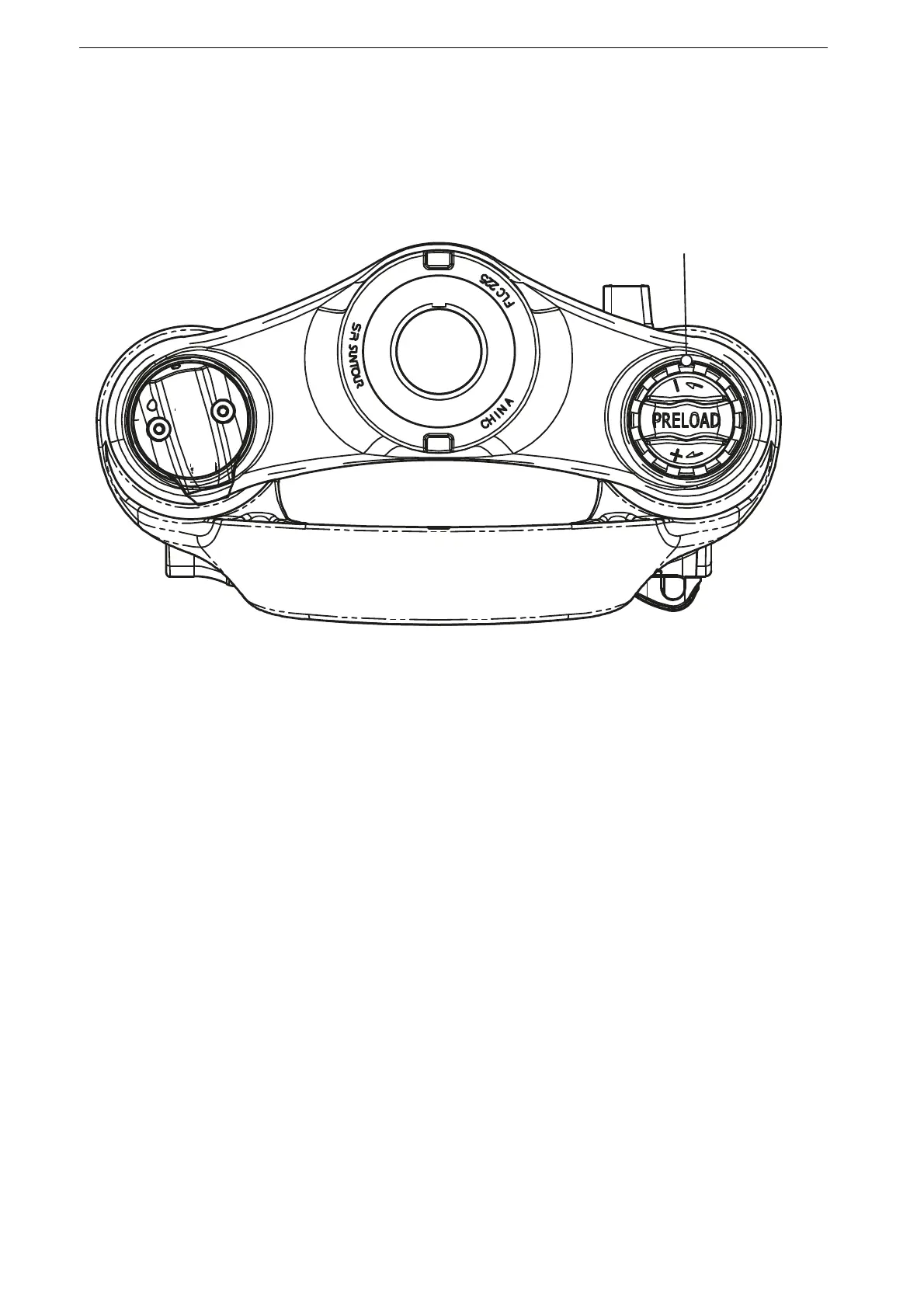

Figure 117: Sag setting wheel (1) on the suspension fork crown
Turn the sag setting wheel clockwise to
increase the spring pre-tensioning.
Turn the sag setting wheel anti-clockwise to
decrease the spring pre-tensioning.
You will have made the ideal setting when the
shock absorber deflects 3 mm when subject to
body weight.
3 Replace the plastic cover on the crown after
making the setting.
