MY22P01 - 12_1.0_31.08.2021
106
Operation
6.5.9.4 Grip distance on a MAGURA disc brake lever
Only applies to pedelecs with this equipment
The brake lever position can be adjusted to the
rider's requirements. Such adjustment does not
affect the pressure point or the position of the
brake linings.
Turn the setting screw/twist knob (5) anti-
clockwise towards minus (–).
The brake lever moves closer to the handlebar
grip.
Turn the setting screw/twist knob (5) clockwise
towards plus (+).
The brake lever moves away from the
handlebar grip.

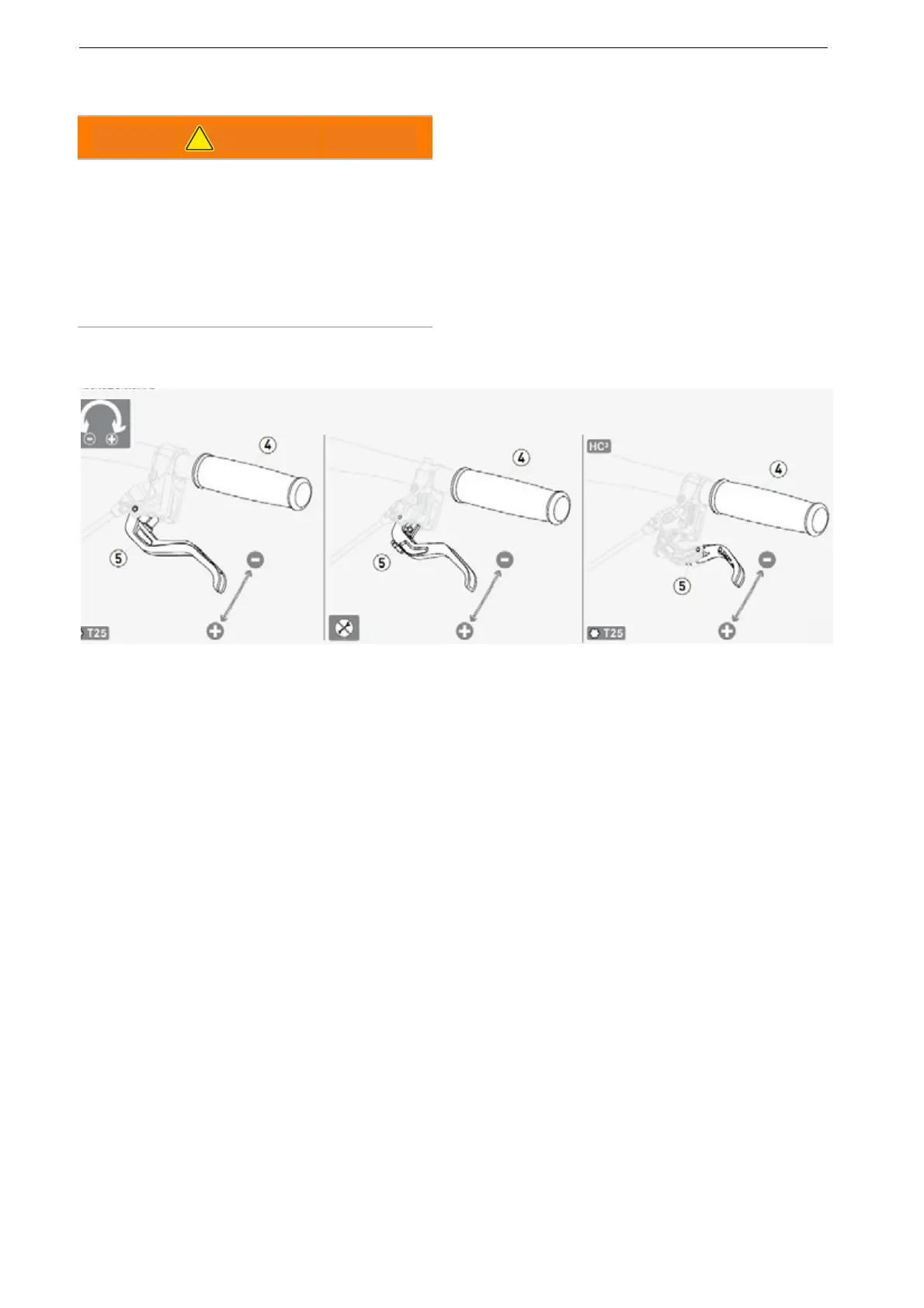

Figure 112: Adjusting the grip distance on a MAGURA disc brake lever
Crash caused by incorrectly set grip distance
If brake cylinders are set incorrectly or installed
wrongly, the braking power may be lost at any
time. This may cause a crash with injuries.
Ensure that the fully applied brake lever is at a
minimum distance of 20 mm from the
handlebars.
