MY22P01 - 12_1.0_31.08.2021
73
Assembly

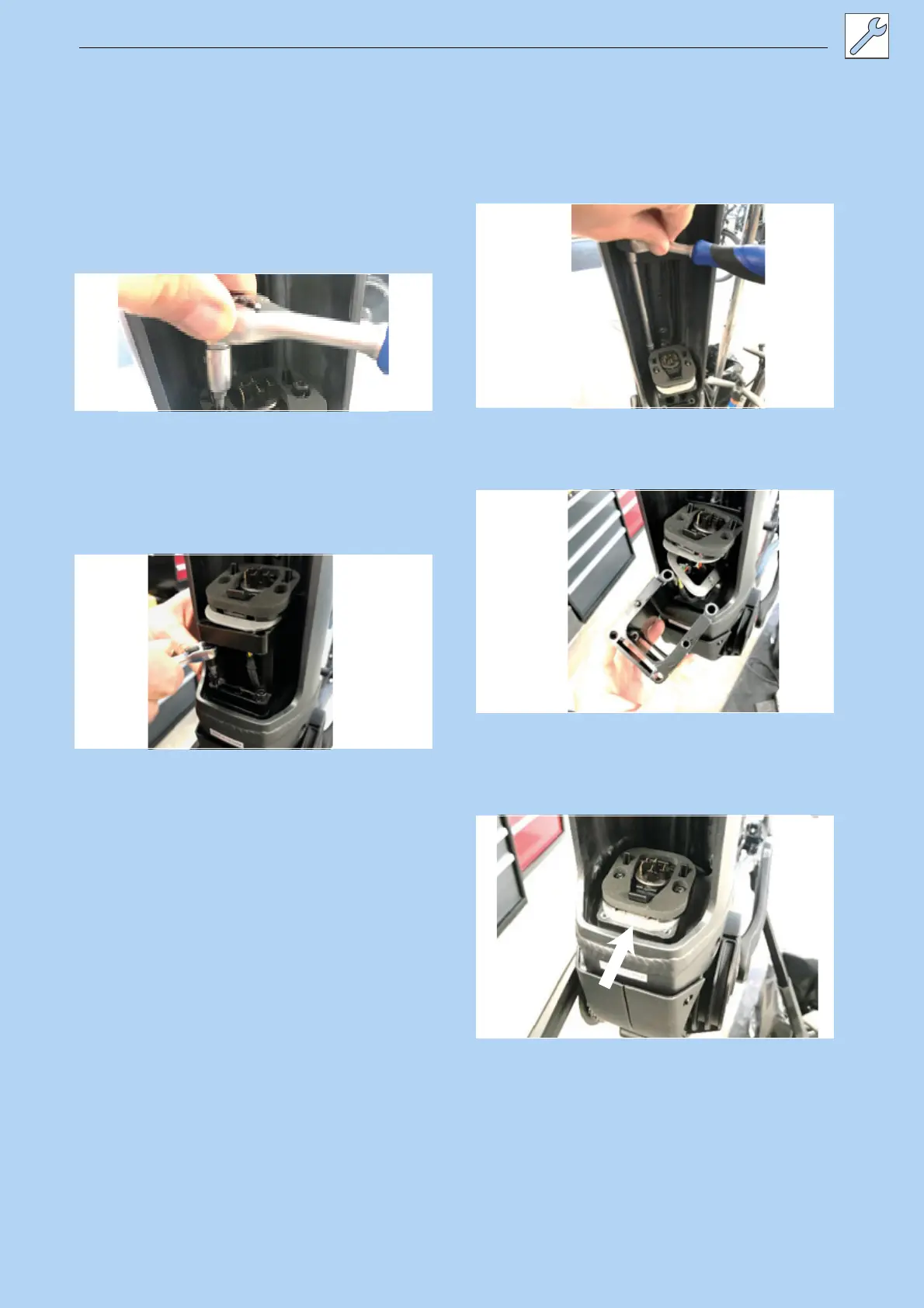

5.3.2 Preparing the battery
5.3.2.1 Retrofitting the PowerTube adapter
Only applies to pedelecs with this equipment
A PowerTube Adapter 400 or 500 needs to be
retrofitted to use a BOSCH PowerTube 625
battery.
1 Use a TORX® T25 wrench to undo the screws
in the battery mount.
Figure 56: Undoing screws on battery mount
2 Use a ratchet to remove the two 4 mm hexagon
screws in the PowerTube adapter. If you don't
have a ratchet, you can use a hexagonal key to
remove the screws.
Figure 57: Removing the 4 mm hexagon screws
3 Use a ratchet to remove the two 4 mm hexagon
screws in the PowerTube adapter.
Figure 58: Removing hexagon screws
4 Pull out the PowerTube adapter.
Figure 59: Pulling out the PowerTube adapter
5 Use adapter plates to adjust the distance if
necessary.
.
Figure 60: Fitted adapter plates
