MY22P01 - 12_1.0_31.08.2021
38
Description
3.3.5.4 Rim brake

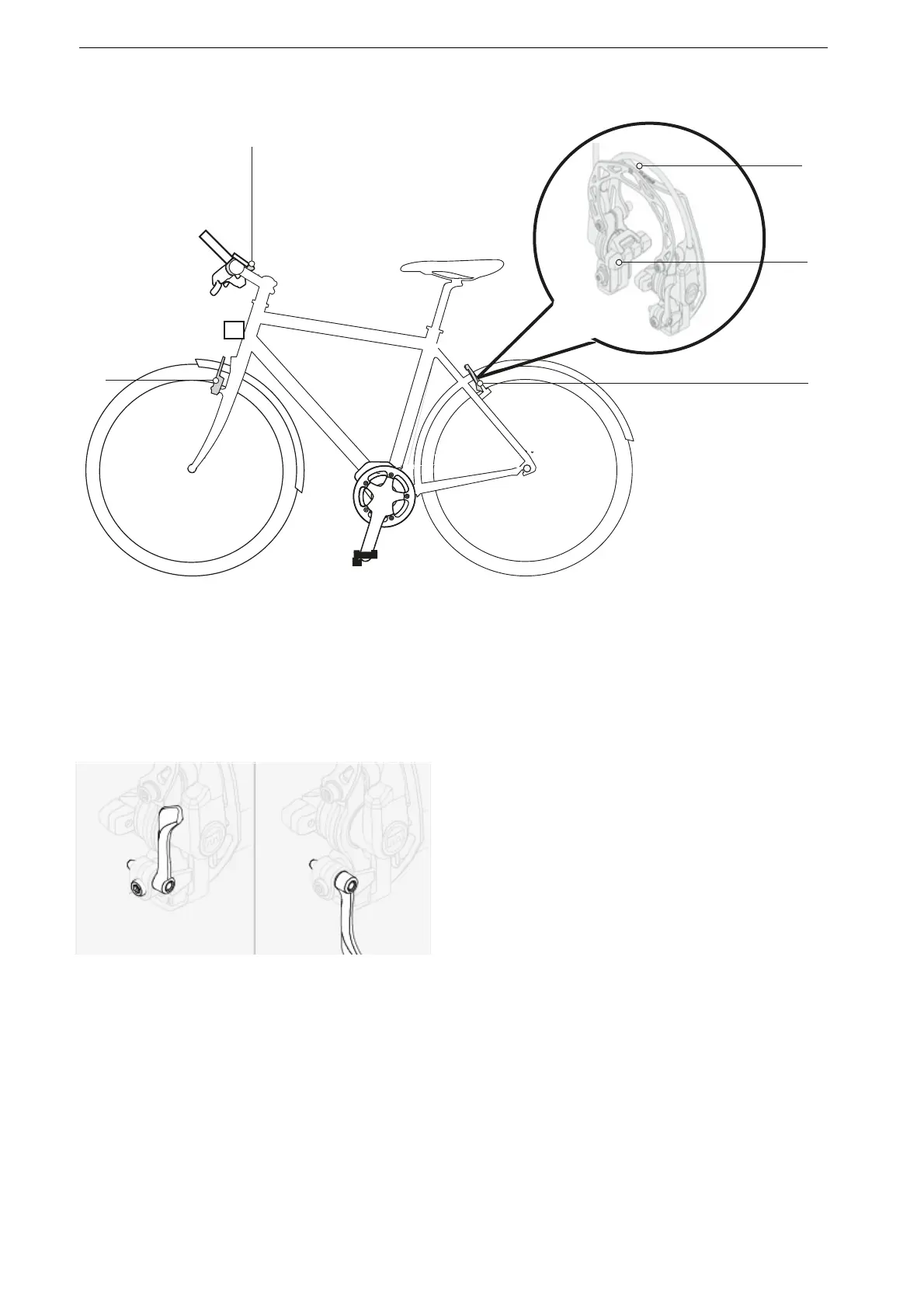

Figure 23: Brake system with rim brake in detail – MAGURA HS22 used as an example
1 Rear wheel rim brake
2 Brake lining
3 Brake booster
4 Handlebars with brake lever
5 Front wheel rim brake
Figure 24: Rim brake locking lever closed (1) and open (2)
The rim brake stops the wheel moving when the
rider pulls the brake lever, causing two brake
linings, positioned opposite one another, to press
onto the rims. The hydraulic rim brake features a
locking lever. The rim brake locking lever is not
marked with any lettering. Only specialist dealers
may set the rim brake locking lever.
