Description
Steel suspension fork structure
The stem and the handlebars are fastened to the
fork steerer. The wheel is fastened to the axle.

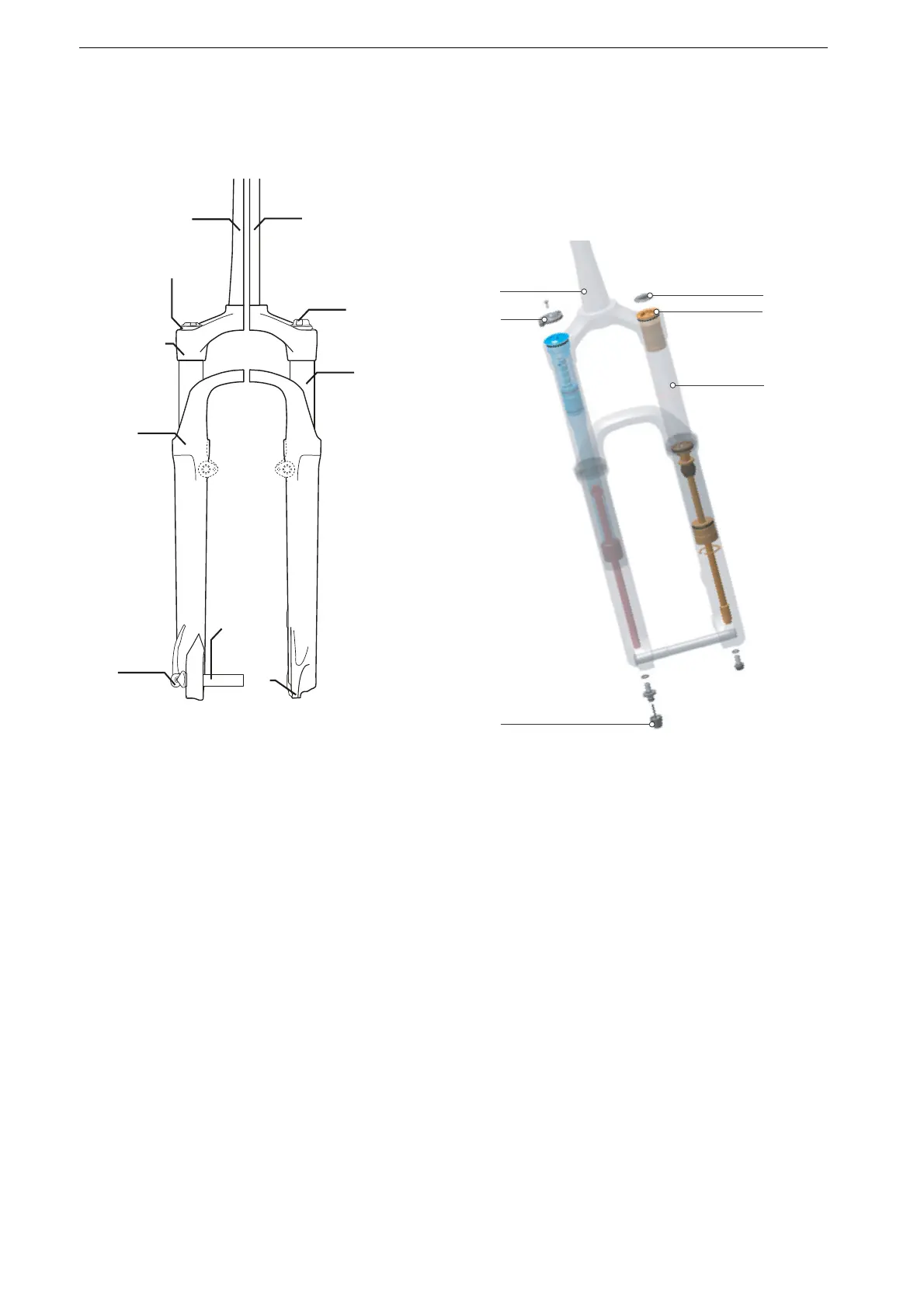

Figure 13: Suntour steel suspension fork as an example
1 Fork steerer
2 Sag setting wheel
3Crown
4 Dust seal
5Q-Loc
6Axle
7 Fork end
8 Stanchion
9 Compression damper
Air suspension fork structure
Depending on the model, the air suspension fork has
either
• an air suspension assembly group (orange) and/
or
• a compression damper assembly (blue) and/or
• a rebound damper assembly group (red)
.
Figure 14: Internal structure of air suspension fork
1 Air valve
2 Air valve cap
3 Fork steerer
4 Sag setting wheel
5 Rebound adjuster
6 Stanchion
