Penn A5 Series User Manual

30
Setting up the QREV/PSHC setup

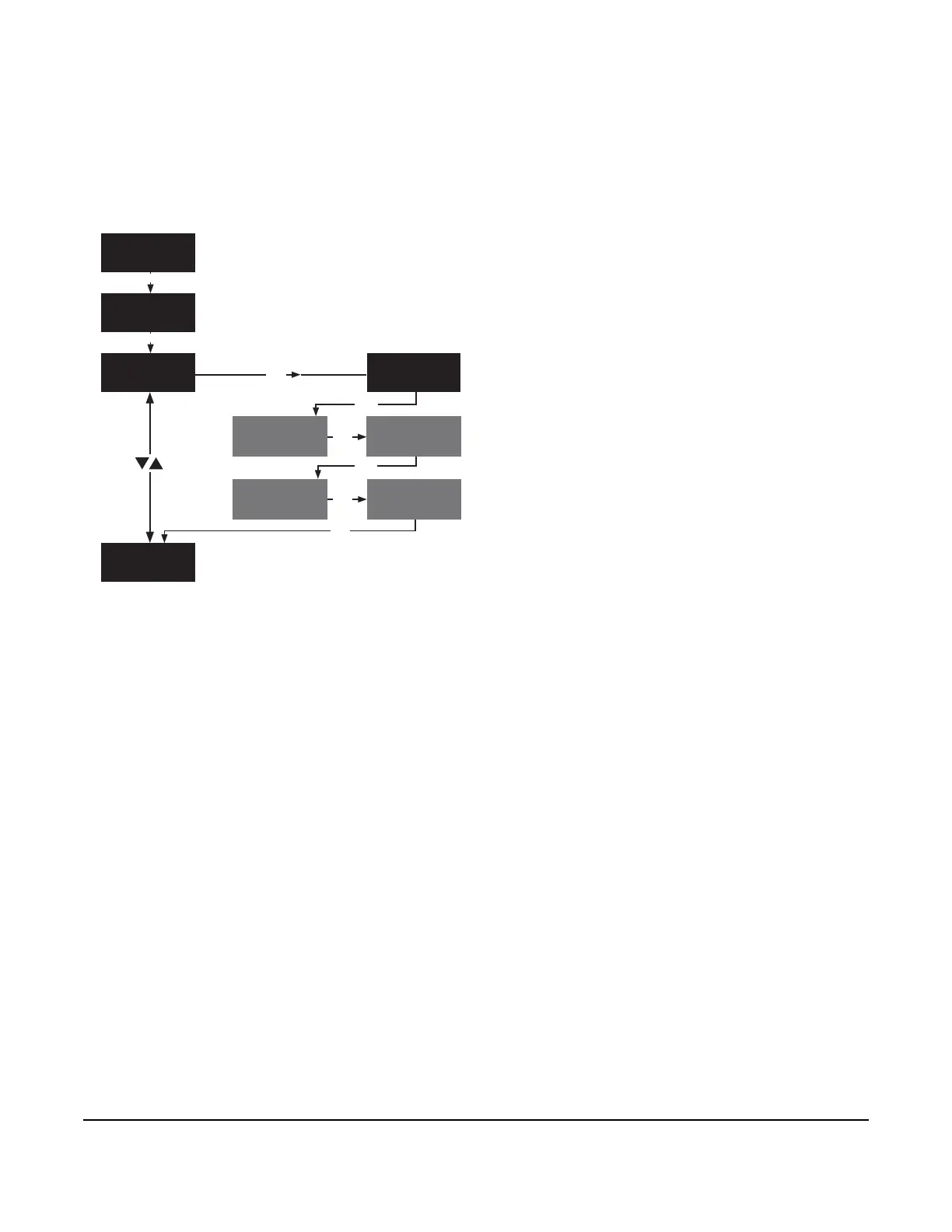

To set up the QREV/PSHC setup parameters, navigate to the SYSTEM SETUP start screen and press SET. To
move through the QREV/PSHC screens, press the DOWN and UP arrow keys.
Note: If you select NO in the PSHC INSTALLED screen, the QREV/PSHC SUPERHEAT and QREV/PSHC
REFRIGERANT screens do not appear.
15°FA52x
QREV/PSHC
DATE/
TIME
SET
SET
SET
PSHC
INSTALLED
YES
QREV/PSHC
REFRIGERANT
SET
SET
SET
SET
AM
SET
SYSTEM SETUP
SET
SET
QREV/PSHC
SUPERHEAT
SYSTEM NAME
SET
SET
SET
410
A
0°
SET
QREV/PSHC
SUPERHEAT
45
2
_ _ _ _°
SET
QREV/PSHC
REFRIGERANT
513
A
In the DATE/TIME start screen, go to the QREV/PSHC screen and press SET.
To indicate if a QREV/PSHC is installed and connected to
the A5xx Controller, select YES or NO and press SET.
To set the refrigerant type used by the system, select the
refrigerant type from the available options and press SET.
Note: For more information about available
programmed refrigerants, refer to the Quick
Response Expansion Valve (QREV) and
Precision Superheat Controller (PSHC) Product
Bulletin (LIT-12012398).
To set the superheat temperature value, select the
superheat temperature value from the range 2°F to 45°F
and press SET.
