Setting up the universal inputs

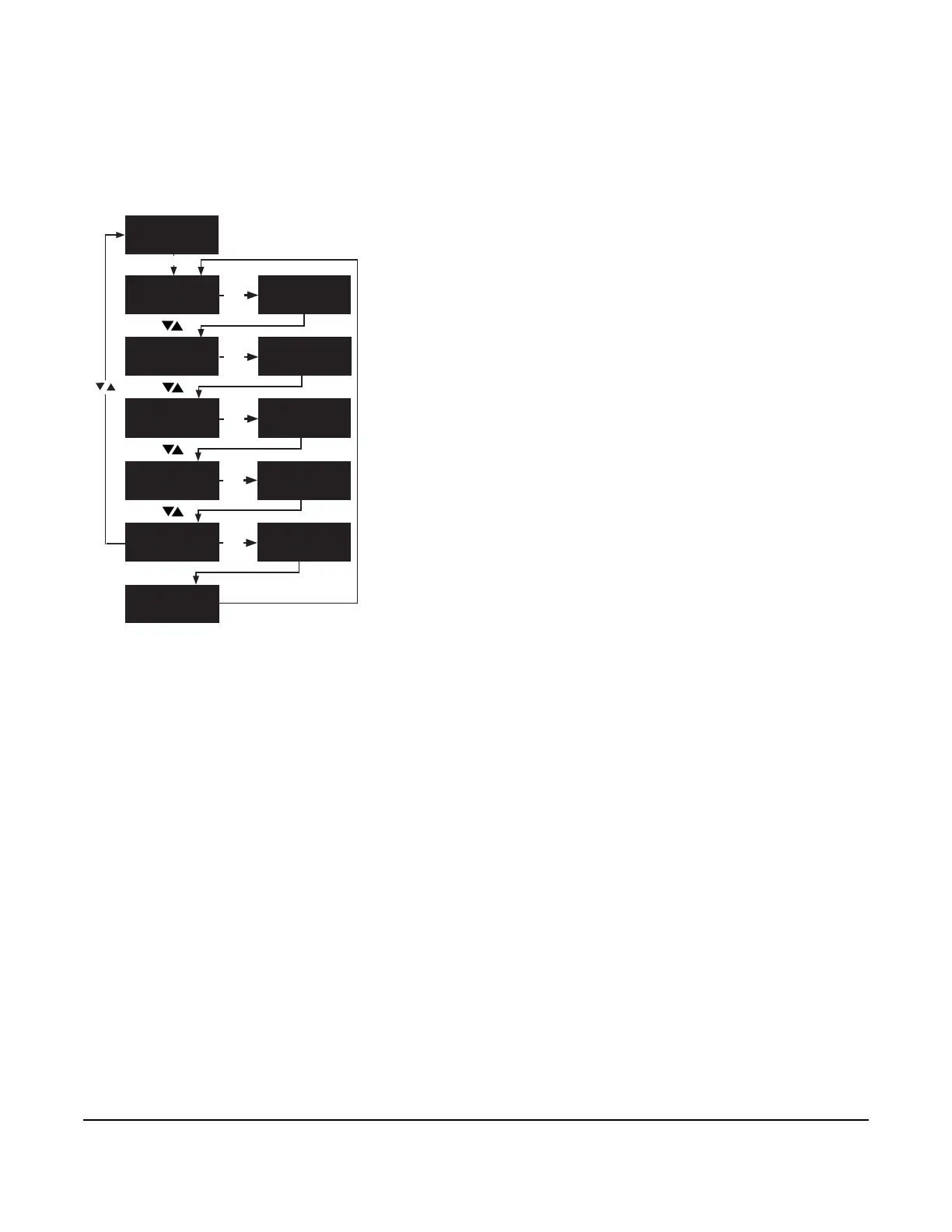

To set up the universal inputs, navigate to the UNIVERSAL INPUTS start screen and press SET. To move through
the UNIVERSAL INPUTS screens, press the DOWN and UP arrow keys.
Note: The UI 5 setup screens are identical to the following UI 4 setup screens.
15°FA52x
UI 4
ACTIVE STATE
SET
ACTION
SET
ACTION
NOR
MAL
ACTIVE STATE
MODE
SET
ACTION DELAY
0 MIN
SET
F
10°
SET
SET
SET
SET
SET
ACTION DELAY
SET
UNIVERSAL
INPUTS
SET
TYPE
SET
TYPE
BIN
ARY
SET
SET
UI 5
SET
CLO
SED
To set a universal input mode for UI 4, select EMG SW (emergency
switch), MAN RM (man in room) REF LK (refrigerant leak) or NON
(none) and press SET.
To set an input type for UI 4, select BINARY or ANALOG and press
SET.
To set an active state for UI 4, select an active state value from the
range 0 V to 10 V and press SET.
To set an action mode for UI 4, select NORMAL, COO OFF (cool off),
or AUX ON and press SET.
To set an action delay time for UI 4, select an action delay value from
the range 0 minutes to 10 minutes and press SET.
