INTELLICHEM
®
Controller Installation and User’s Guide
INTELLICHEM
®
Controller Installation and User’s Guide
31
Wiring the IntelliChem
®
Controller Transformer
HIGH VOLTAGE WIRING
The high voltage wiring compartment is located inside the IntelliChem controller
enclosure. The IntelliChem controller can be connected either to 120VAC or 220-240
VAC. The IntelliChem controller should be wired to receive power from the filter pump
relay. Connect the AC power supply voltage to the PUMP SIDE OF THE MAIN FILTER
PUMP RELAY located in the load/power center (see page 40 for the IntelliChem
controller AC power wiring diagram). There is no ground/bonding terminal required
at this non-metallic enclosure. Follow manufactures instructions when installing and
testing of ground fault circuit breakers (GFCB) and interrupters (GFCI).

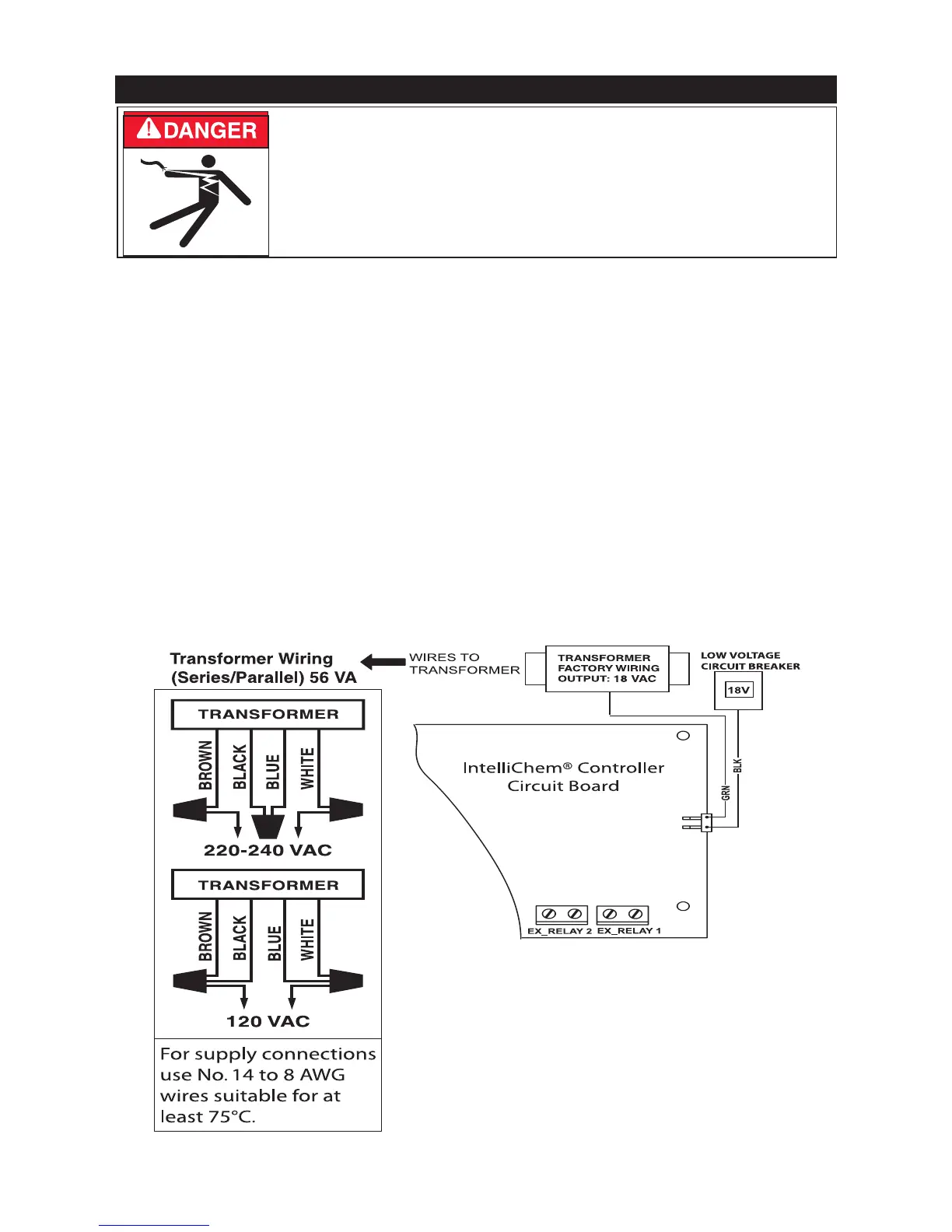

Connect input AC wires to the IntelliChem controller transformer wires as follows:
• 120 VAC: Connect one wire to the Brown/Black wires
connected together and one wire to the Blue/White wires
connected together.
• 220 - 240 VAC: Connect one wire to White wire and one wire to
Brown wire. The Black/Blue wires are connected together.
D A N G E R !
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION
Always disconnect AC power to IntelliChem controller at the
circuit breaker before servicing. Failure to do so could result in
death or serious injury to installer, serviceman, pool users, or
others due to electrical shock.
IntelliChem
®
Controller (Transformer Wiring)
To Next Page
