IntelliChem
®

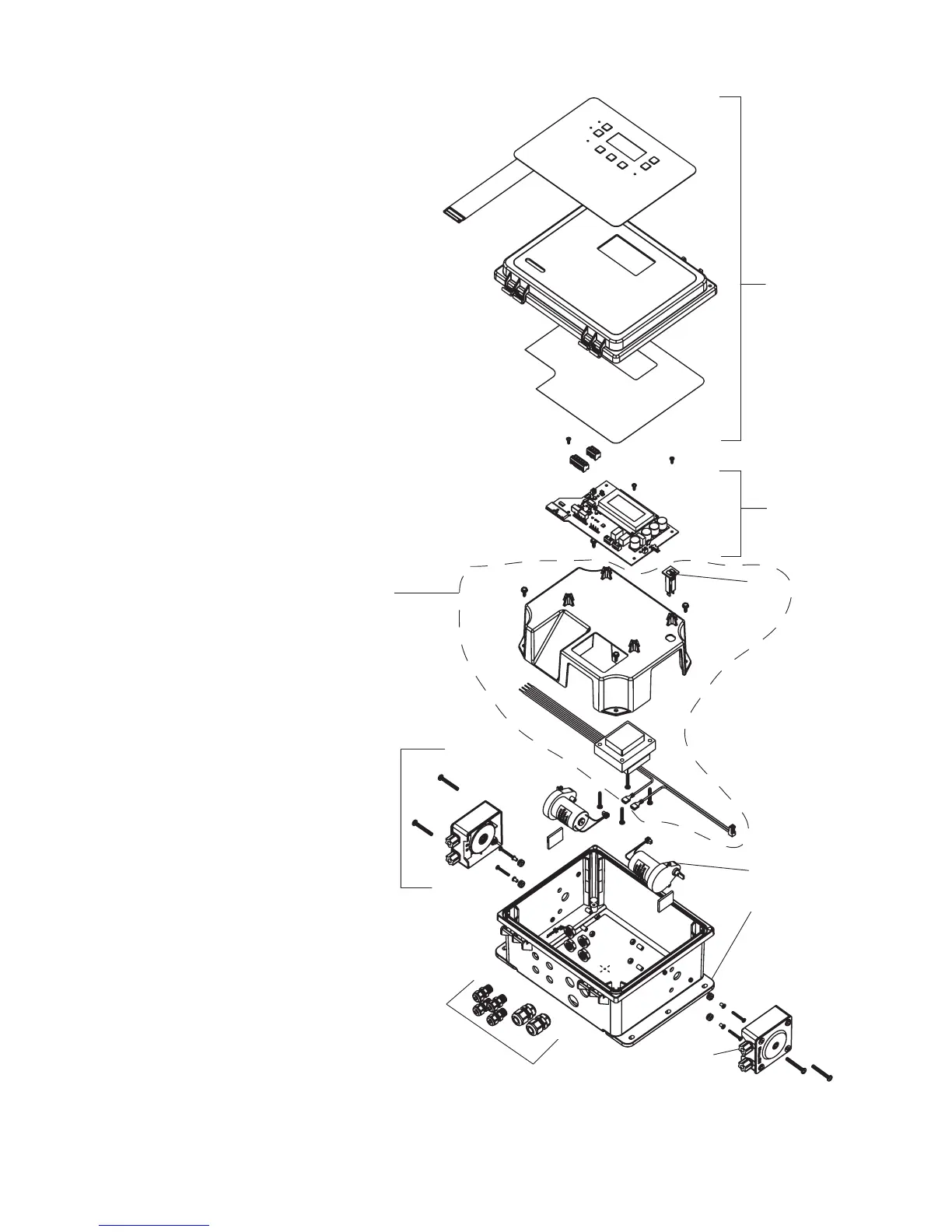

Controller Replacement Parts List
1. P/N 521465Z - Top Half (Lid with
overlay and wiring diagram).
2. P/N 521319Z - IntelliChem Controller
Circuit Board.
3. P/N 8520031Z - Circuit Breaker.
4. *P/N 521348Z - Pump head Jaco
fitting with tube and screws.
5. P/N 521466Z - Jaco fitting.
6. P/N 521467Z - Enclosure mounting
brackets.
7. P/N 521338Z - Pump motor.
8. P/N 521468Z - Strain relief kit.
9. P/N 521335Z - Replacement
transformer with mounting plate.
3
1
2
7
5
6
4
8
9
Warranty Information
The IntelliChem controller has a one year limited warranty.
For more information contact Customer Support (800) 831-7133
Note: (*) MUST REPLACE ONCE A
SEASON (YEARLY).

Pentair intellichem Specifications

General

pH Control	Yes
ORP Control	Yes
Display	LCD
Waterproof Enclosure	Yes
Enclosure Rating	NEMA 4X
Alarms	Yes
Operating Temperature	32° to 122°F (0° to 50°C)
Humidity Range	0% to 95% non-condensing
Communication	RS-485
Outputs	Relays for chemical feed pumps
Inputs	Flow sensor
