INTELLICHEM
®
Controller Installation and User’s Guide
40
Note: For more information about operating
automation pool controllers, refer to the following
manuals:
- IntelliTouch
®
Control System User’s Guide
(P/N 521075)
- EasyTouch
®
Control System User’s Guide
(P/N 521044)
IntelliChem
®

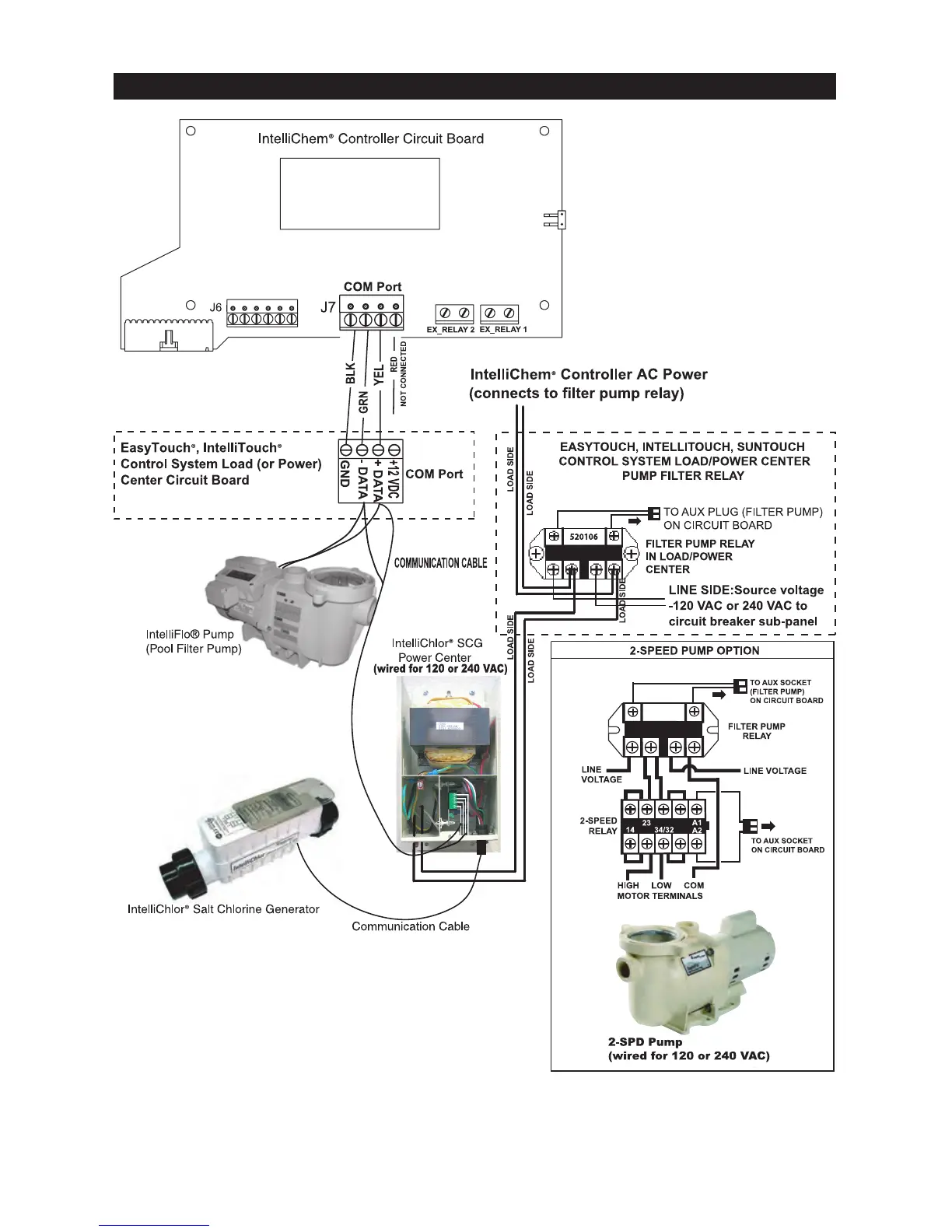

Controller AC Power and COM port (RS-485) Wiring Diagram
