ORP Set: Displays the current ORP set point value.
The adjustable range is from 650 to 800 in increments
of 10. The default ORP set point value is 700. The
ORP set point is the value that IntelliChem will try to
achieve based on the active sanitizer. To adjust the
ORP set point, press the button next to ORP Set.
STATUS: Displays the current communication link
between IntelliTouch and IntelliChem via the RS-
485 cable. IChem Comm Error: Check the RS-485
communication cable is connected to the COM port
on the IntelliTouch Personality circuit board.
USING SCG: “USING SCG” displays if the IntelliChlor
salt chlorine generator is enabled. The SCG is enabled and disabled from the MENU >
SETUP > EQUIPMENT > CHLORINATOR screen.
Note: IntelliChem must also be set up to use the
IntelliChlor SCG either with the AUTO SETUP
Setup Wizard (page 6) or the Configuration/
Hardware/ORP Control/Doser Type (page 24).
DISABLE/ENABLE INTELLICHEM: To disable
IntelliChem, press the button under DISABLE
ICHEM. To enable IntelliChem, press the button next
to INTELLICHEM. On the next screen press button
next to NO and select YES. Press SAVE to save the
setting and return to the Equipment screen.
Note: See page 28 for information the online Langelier Saturation Index (LSI) Calculator
to diagnose the water balance in your pool.

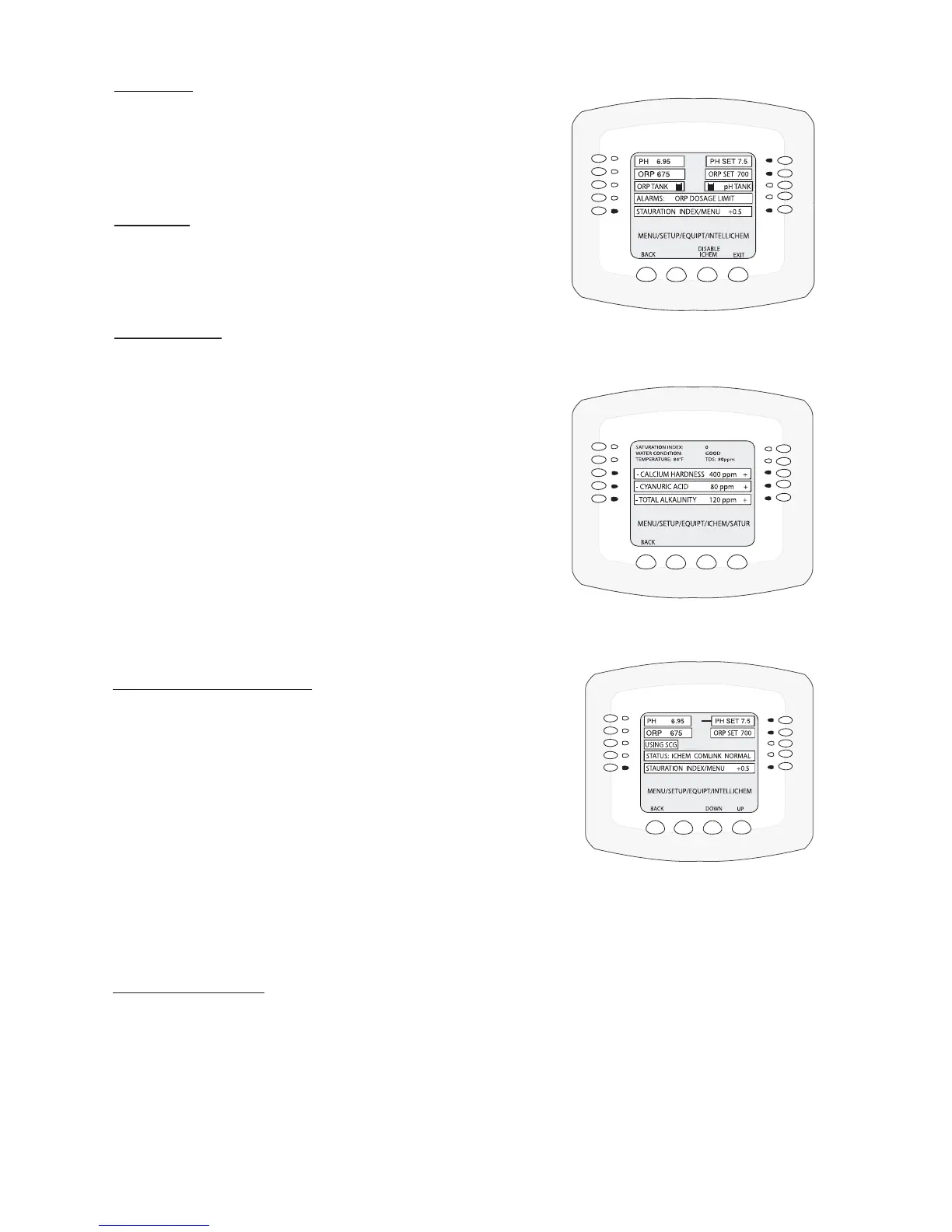

Saturation Index/Menu: To access the Saturation
Index screen, press the button next to SATURATION
INDEX/MENU. The current Saturation Index value,
water condition, water temperature and salt level
are displayed. Press the button next the following
selections to adjust the levels/values: Calcium
Hardness: Recommended range is 200-400 ppm.
Levels should be tested weekly. Cyanuric Acid:
Stabilizes chlorine in water from UV degradation.
When using the IntelliChlor SCG, cyanuric acid
level should be maintained between 30-50 ppm.
Total Alkalinity: APSP’s recommended ideal range for is 80 to 120 ppm for “gunite” and
concrete pools and 125-170 ppm for painted, vinyl, and fiberglass pools. Test levels weekly
and adjust according to your pool professional’s recommendations.
Saturation Index: The saturation Index displays IDEAL (Optimum levels), CORROSIVE
or SCALING. The following are recommended pool chemistry Saturation Index levels: pH
range: 7.2 to 7.6 ORP range: 650 to 800. Alkanlinity: 80 to 120 ppm. Calcium
Hardness: 200 - 500 ppm. Cyanuric Acid/Stabilizer: 30-50 ppm.
