IntelliSync Control and Monitoring System User's Guide

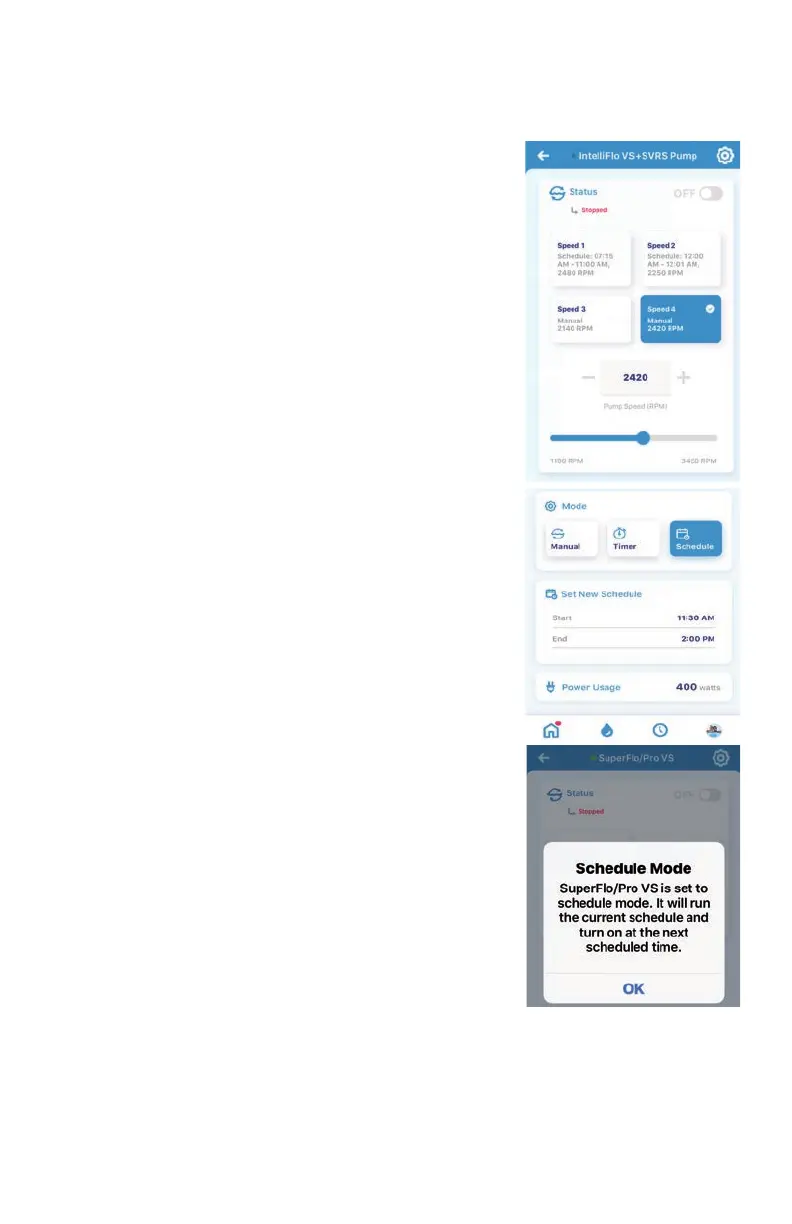

Pump Speed Settings (IntelliFlo®)
To access the Pump Settings page from the
Dashboard, tap the name of the pump. Tap the Settings
icon (top right) to display the pump's features and other
information. See page 17.
Set the pump speeds:
∙ Tap on Speed 1, 2 ,3, or 4, then use the
speed slide bar to adjust the selected pump
speed (RPM). Repeat for each of the pump
speeds (1-4). Note: IntelliFlo Pump Speed
Priority: The highest assigned pump speed In
the Pentair Home app will always take priority
over the lowest speed.
∙ Tap Save when nished. The Speed Settings
page displays.
Turn the pump ON or OFF (Enable):
Status (OFF/ENABLED - ON): Tap Speed
(1, 2, 3 or 4), then tap the Status button
(Enabled) to turn the pump ON or OFF. OFF:
Turn pump OFF. ENABLED (ON): Turn pump
on.
Status Stopped: Pump has stopped. Indicates the
pump is set to Schedule mode. The pump will turn
on at the next scheduled time, after the current
Schedule has nished.
Power Usage: Displays the current power usage in
Watts for the selected pump.
MODE (Manual - Timer - Schedule):
∙ Manual: Tap on Speed 1, then tap Manual.
The pump is in manual mode. Use Status
(Enabled (On) /Off) to turn the pump on or
off. Tap Home to save the setting and return
to the Dashboard.
∙ Timer: Selected pump can be set to run up
to 9 Hrs. 59 mins. The one time count down egg timer will stop
after the Timer has reached it's stop time. Tap Home to save the
setting and return to the Dashboard.
∙ Schedule: Tap on Speed 1, then tap Schedule. Tap the Start time
and End time to run the schedule, then tap Add to Schedule to
save the schedule. Tap Home to save the setting and return to
the Dashboard.
